SITAGXILIUM

your best business partner

Perfection in detail

SITAGXILIUM is more than just an office chair. It’s also your partner in daily business. Its functionality, long service life and adaptability ensure that it’s a profitable investment. It guarantees not only dynamic sitting but also a significant reduction in the negative effects of long sitting.

The great number of versions within the SITAGXILIUM family means that it can equip virtually all offi ce areas – beginning with open-plan offi ces, including meeting zones, and extending to executive offi ces. The product line meets all the requirements of a great number and variety of work environments. It provides effective functions not only in classic cell offi ces, but also in offices designed according to the Activity-Based Working Concept. Indeed: SITAGXILIUM above all stands for one prime benefi t: fl exibility.

Awards & Certificates

  • geprüfte Sicherheit
  • Ergonomie geprüft
  • German Inno vation award 19 - Gold
  • German design award winner 2019
MARTIN BALLENDAT

DESIGN: MARTIN BALLENDAT

MARTIN BALLENDAT is one of the best designers for offi ce chairs and office furniture. His design studio has been awarded more than 150 design prizes, including 40 Red Dot Awards. He works for 15 internationally prominent brands, and more than one million men and women sit on chairs designed by him. Accordingly, he understands as no one else the requirements of modern offi ces and their staff.

SITAGXILIUM is based on a design and development process planned down to the last detail. This process unites the competence of the best designers, technologists, and experts from the Nowy Styl. As a result, SITAGXILIUM combines all the characteristics of an ideal offi ce chair.

Castors

Brake-unloaded castors. Material: polypropylene (recyclable), non-chalking. Load capacity: 50 kg per double castor. Standard with hard castors for soft flooring, if requested available with soft castors for hard floors.

Chair base

  1.  Material: pressure-diecast aluminium (recyclable). Static load capacity > 1,400 kg. The diameter of the chair base satisfies design guidelines for chair dimensions to prevent the chair from tipping over.
  2. Material: synthetic (recyclable). Static load capacity > 1,000 kg. The diameter of the chair base satisfies design guidelines for chair dimensions to prevent the chair from tipping over.

Height adjustment

By safety gas spring with comfortable deep vertical pneumatic cushioning. The gas spring does not support lateral forces. The seat support and the gas spring are not permanently attached to each other. A synthetic sleeve ensures gas-spring protection, which eliminates grease rings and extends the service life of the gas spring.

Mechanical system

  1. The synchronous mechanical system, with automatic adjustment to body weight, adapts to the body weight of each individual user. The opening angle of the backrest is 20 °. The seat and backrest angles can be locked in 4 preset positions.

Material: supporting parts are made of pressure-diecast aluminium (recyclable).

  1. Advanced synchronous mechanical system with setting of lateral spring force by means of a setting wheel on the seat plate. The opening angle of the backrest is especially wide: 30 °. The seat and backrest angles can be locked in 5 preset positions. The standard seat tile is always 5 °.

Material: supporting parts are made of pressure-diecast aluminium (recyclable).

Course of movement

The point-synchronous adaptation to user’s movements eliminates the sliding effect on the user’s back (i.e., there is no “shirt-pulloff” effect). The lumbar zone of the backrest always remains at the same point. The mechanical system can be set to continuous function: this means that the chair automatically adjusts to the movements of the user (dynamic sitting). Mechanical springs allow the user to quickly and easily adjust the pressure of the backrest to his or her own individual needs. These mechanical springs produce pleasant progressively increasing pressure, the farther back the user leans.

Backrest

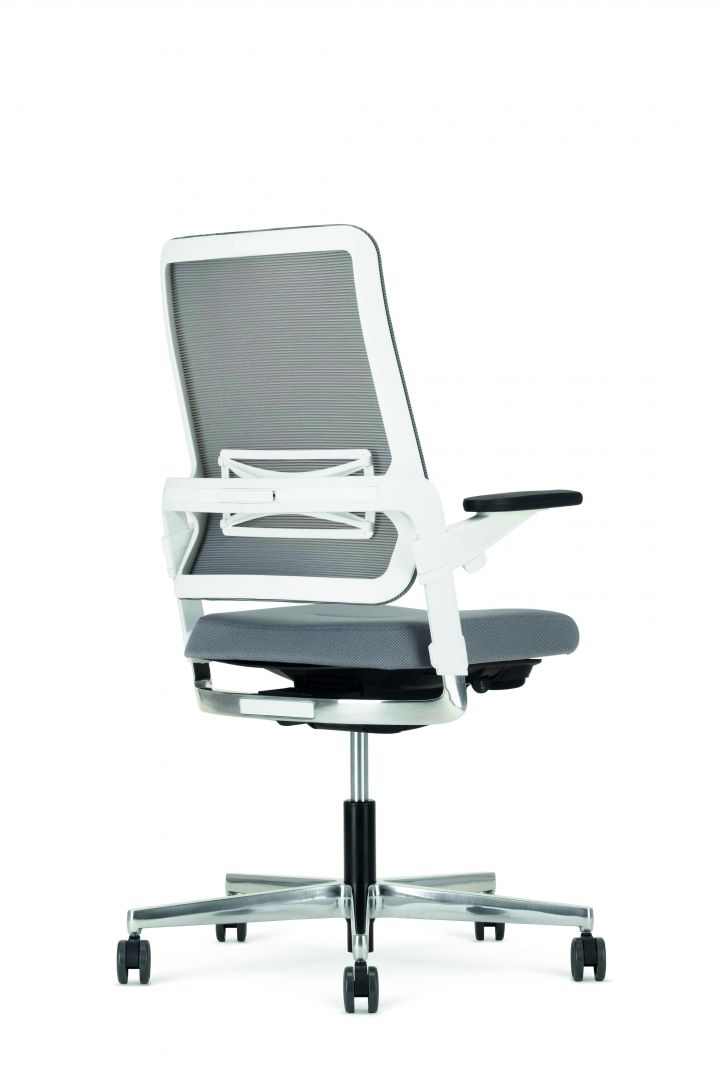

Mesh cover: filigree backrest with breathable mesh cover made of elastic 3D functional woven mesh. Available as option with depth-adjustable lumbar support.

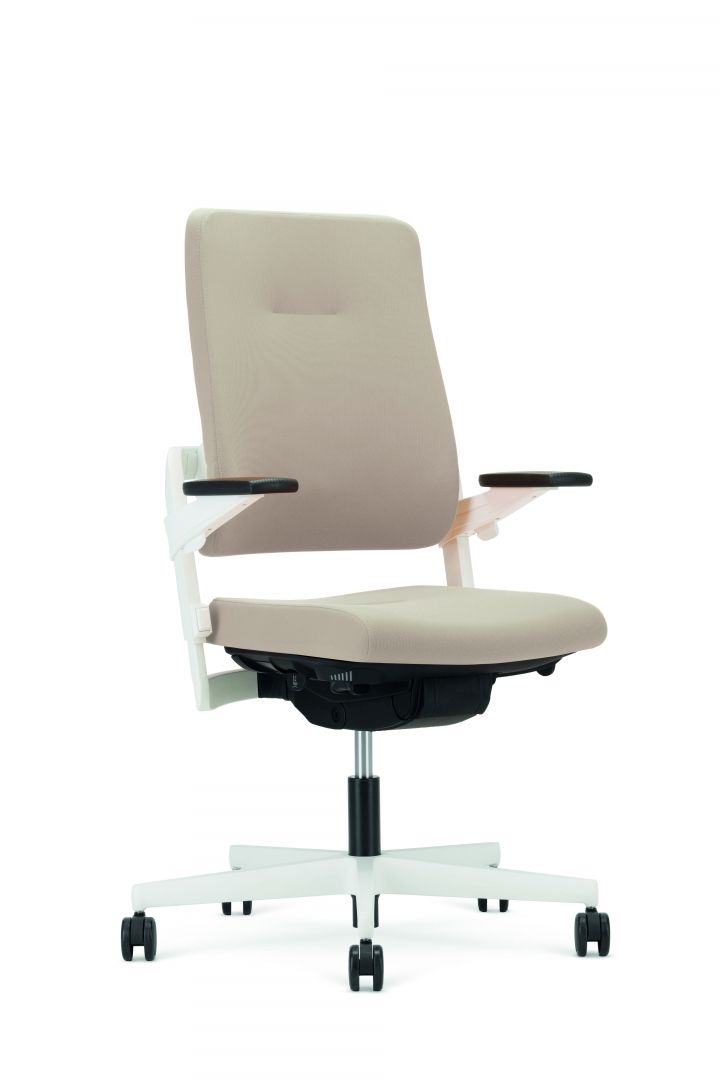

Upholstered backrest: the backrest is formed in such a way to provide support in the lumbar zone and to offer good lateral support.

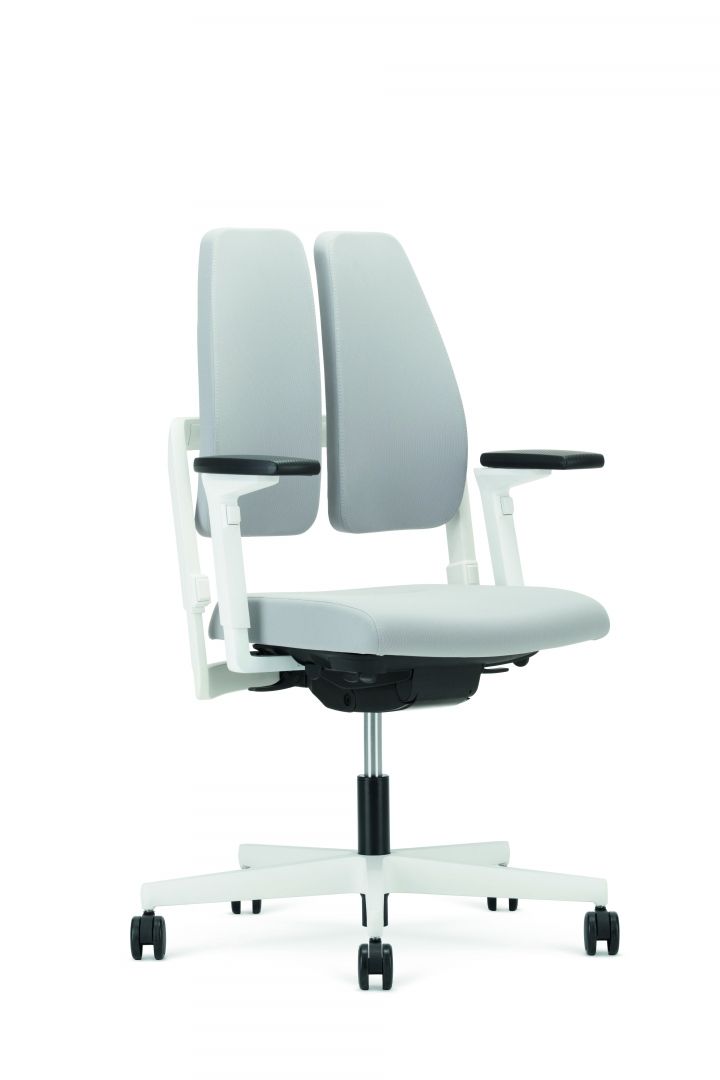

Duoback: the Duoback backrests have two freely movable wings that relieve the spine up to 50 % and that optimally take up the user’s back.

The backrests are height-adjustable by 11 cm in 12 stages.

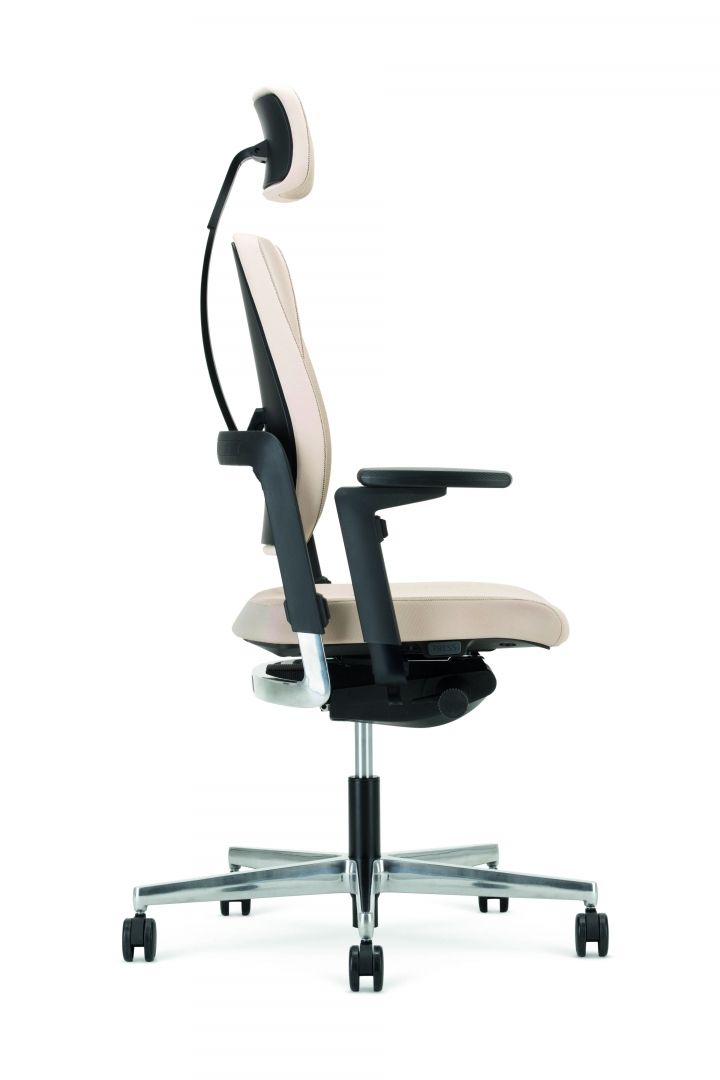

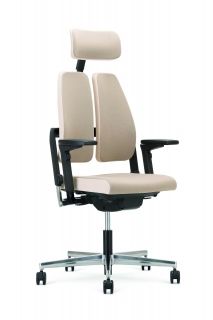

Available as an option: a headrest.

Seat surface

In the forward zone, with deep waterfall seatfront to prevent constriction of blood hindrance in the thighs. The axis of the seat inclination is in the forward area, to prevent loss of floor contact with the synchronous movement of seat and backrest. Standard always with sliding seat.

Armrests

3D armrests: height and depth adjustment, and swivel action with Soft Pads.

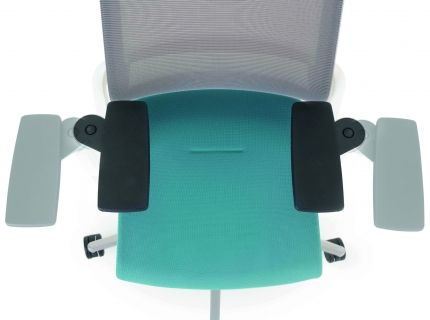

4D armrests: height and width and depth adjustment, and swivel action with Soft Pads.

XD armrests: height and width and depth adjustment, and 360 ° swivel with Soft Pads.

Foam

Cold-moulded foam on upholstery support. Contains no chlorofluorohydrocarbons (CFC). The foam is fire-resistant in accordance with EN 1021, parts 1 and 2.

Upholstery

Backrests: filigree backs, as desired with filigree woven-mesh backrest cover, or with upholstery.

The backrest covers are loosely upholstered onto breathable, open-port moulded foam. This ensures breathability and vapor permeability. The superiority-quality upholstery eliminates for build-up of heat in the chair, which improves bioclimate.

Synthetic materials

The synthetic materials used are marked and can be recycled. The pigments are without heavy metals.

Standards:

Office swivel chairs in accordance with DIN EN 1335.



BF4002

BF4002

bright brown
BF4003

BF4003

bright green
BF4302

BF4302

cognac
BF4303

BF4303

orange
BF4402

BF4402

red
BF4003

BF4003

light grey
BF4001

BF4001

dark grey
BF4602

BF4602

bright blue
BF4604

BF4604

dark blue
BF4004

BF4004

black
BF4103

BF4103

grey
XR077

XR077

bright green
XR072

XR072

yellow
XR076

XR076

bright orange
XR081

XR081

grey
XR145

XR145

anthracite
XR005

XR005

blue
XR100

XR100

royal blue
XR026

XR026

dark blue
XR009

XR009

black
XR046

XR046

dark brown
XR136

XR136

bordeaux
XR079

XR079

red
XR108

XR108

beige
XR047

XR047

dark green
XR073

XR073

sky blue
XR160

XR160

petrol
XR171

XR171

dark grey
XR095

XR095

bright blue
XR102

XR102

mauve
XR094

XR094

light grey
FA34

FA34

bright green
F63016

F63016

orange
F60078

F60078

mouse grey
F60019

F60019

dark grey
F66005

F66005

dark blue
F60999

F60999

black
F64089

F64089

red
F61003

F61003

sandy
F64058

F64058

bordeaux
F68146

F68146

green
F66130

F66130

bright blue
FL34

FL34

bright green
FL55

FL55

orange
FL60

FL60

red
FL70

FL70

light grey
FL75

FL75

dark grey
FL80

FL80

blue
FL82

FL82

dark blue
FL85

FL85

black
ME61002

ME61002

beige
ME65011

ME65011

brownish grey
ME61003

ME61003

bright brown
ME61004

ME61004

dark brown
ME68005

ME68005

bright green
ME67002

ME67002

green
ME67006

ME67006

turquoise
ME63017

ME63017

orange
ME64019

ME64019

red
ME66008

ME66008

light grey
ME60004

ME60004

dark grey
ME66009

ME66009

blue
ME66010

ME66010

bright blue
ME60999

ME60999

black
OM60122

OM60122

white
OM60121

OM60121

bright grey
OM60120

OM60120

anthracite
OM60999

OM60999

black
RN62064

RN62064

beige
RN61128

RN61128

ecru
RN61128

RN61128

white
RN61130

RN61130

reddish brown
RN61129

RN61129

dark brown
RN61128

RN61128

green
RN66063

RN66063

turquoise
RN63034

RN63034

orange
RN64089

RN64089

red
RN65078

RN65078

violet
RN60165

RN60165

light grey
RN60011

RN60011

grey
RN60025

RN60025

dark grey
RN66123

RN66123

dark blue
RN60999

RN60999

black
RN66064

RN66064

night blue
RN66140

RN66140

bleu
LS02

LS02

white
LS325

LS325

sandy
LS306

LS306

mocha
LS307

LS307

cognac
LS308

LS308

red
LS301

LS301

black
LS350

LS350

navy blue
LS231

LS231

grey
ST931

ST931

bright grey
ST993

ST993

dark grey
ST586

ST586

blue
ST999

ST999

black
SW

SW

black
SI

SI

silver
PW

PW

pearl white
FP

FP

Polished base (black backrest support)
PO

PO

polished (base & backrest)
NSW

NSW

black (100% polyamide)
NSI

NSI

silver (100% polyamide)
NWE

NWE

white (100% polyester)
NOR

NOR

orange (100% polyester)
NGN

NGN

green (100% polyester)
NGR

NGR

graphit grey (100% polyester)
NSW

NSW

black (100% polyester)
NHG

NHG

light grey (100% polyester)
NSW

NSW

black (100% polyester)
SW

SW

WE

WE

white
CSE21

CSE21

beige
CSE02

CSE02

bright brown
CSE03

CSE03

yellow
CSE07

CSE07

bright green
CSE10

CSE10

turquoise
CSE11

CSE11

light grey
CSE13

CSE13

grey
CSE14

CSE14

black
CSE16

CSE16

green
CSE19

CSE19

pink
CSE20

CSE20

mint
VL2001

VL2001

bordeaux
VL2075

VL2075

red
VL6019

VL6019

orange
VL6012

VL6012

yellow
VL1048

VL1048

beige
VL0034

VL0034

bright brown
VL4041

VL4041

brown
VL0020

VL0020

dark brown
VL9035

VL9035

black
VL4003

VL4003

anthracite
VL4052

VL4052

dark grey
VL4040

VL4040

mouse grey
VL4045

VL4045

light grey
VL4043

VL4043

grey
VL7001

VL7001

violet
VL3067

VL3067

dark blue
VL3069

VL3069

blue
VL5069

VL5069

dark green
VL5041

VL5041

bright green
LDS08

LDS08

light grey mottled
LDS17

LDS17

anthracite mottled
LDS62

LDS62

night mottled
LDS55

LDS55

mint
LDS56

LDS56

mint mottled
LDS59

LDS59

turquoise mottled
LDS49

LDS49

medium green
LDS47

LDS47

green
LDS46

LDS46

bright green mottled
LDS45

LDS45

maize mottled
LDS44

LDS44

yellow mottled
LDS28

LDS28

yellow
LDS74

LDS74

pink mottled
LDS73

LDS73

rust mottled
LDS77

LDS77

rust
LDS79

LDS79

bordeaux
LDS32

LDS32

bright brown mottled
RX612

RX612

pink
RX242

RX242

bright brown
RX362

RX362

dark brown
RX452

RX452

orange
RX662

RX662

rust
RX982

RX982

dark green
RX842

RX842

yellow green
RX933

RX933

green
RX873

RX873

night blue
RX866

RX866

dark blue
RX743

RX743

blue
RX606

RX606

light grey
RX123

RX123

mouse grey
RX143

RX143

grey
RX163

RX163

dark grey
RX173

RX173

anthracite
RX196

RX196

black
RX716

RX716

blue grigio
