XIO 2.0 is a product by Nowy Styl
A perfect world could not exist without responses tailored to your requirements. Body and mind are one. When you relax and your mind is at rest, your thoughts usually become clear and new ideas keep flowing into your head. This is exactly what XIO 2.0 offers: intelligent solutions, perfectly corresponding to the employees’ needs.
Advantages

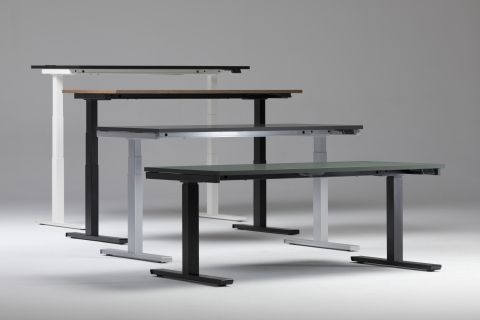

NEW XIO 2.0 height adjustable desks are the perfect solution for a large number of offices with different requirements. They make it possible to switch quickly and easily between sitting and standing work.
Functions and options
Eletric height adjustement range 640-1300mm

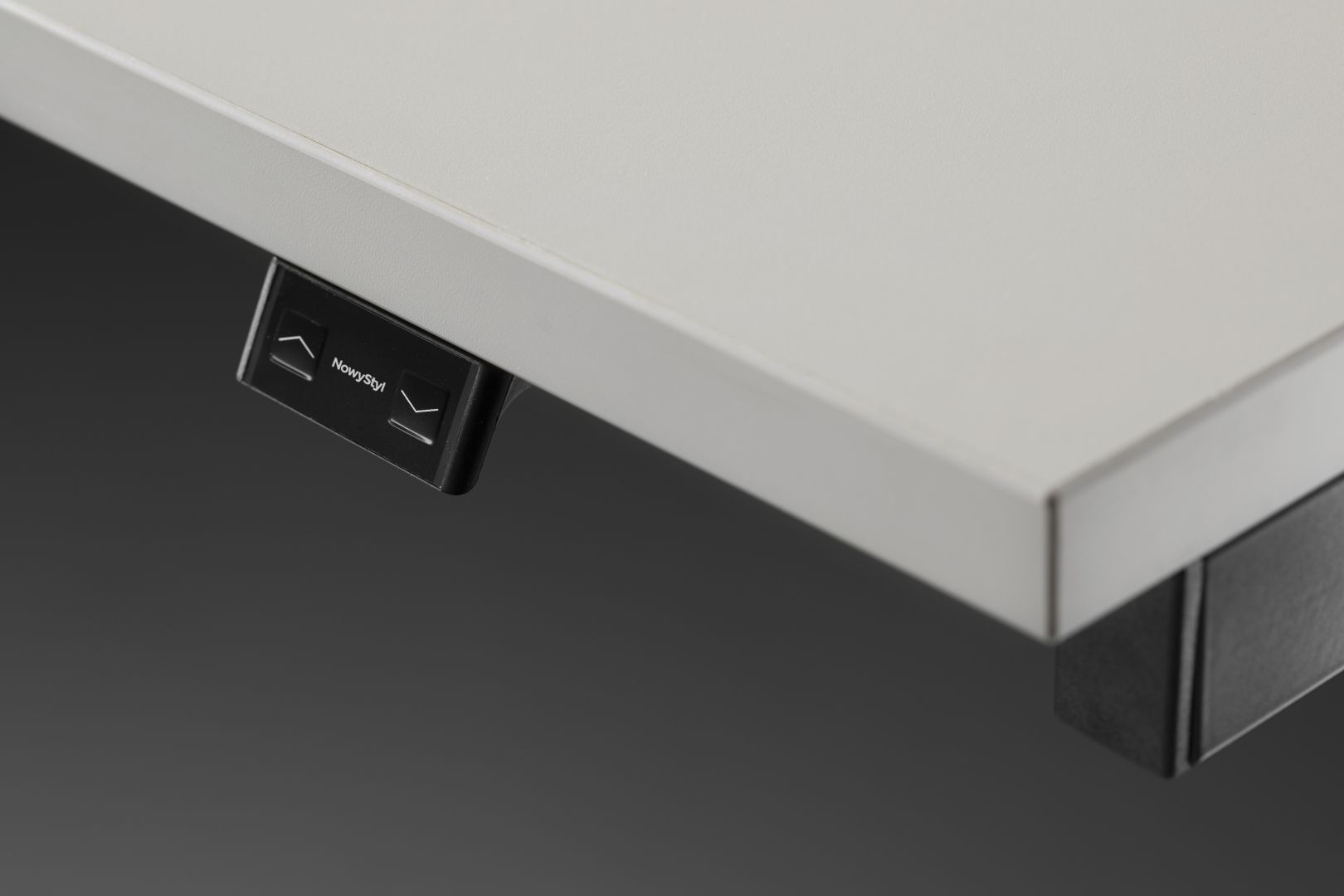

Control panel for desks and workbenches: up & down button

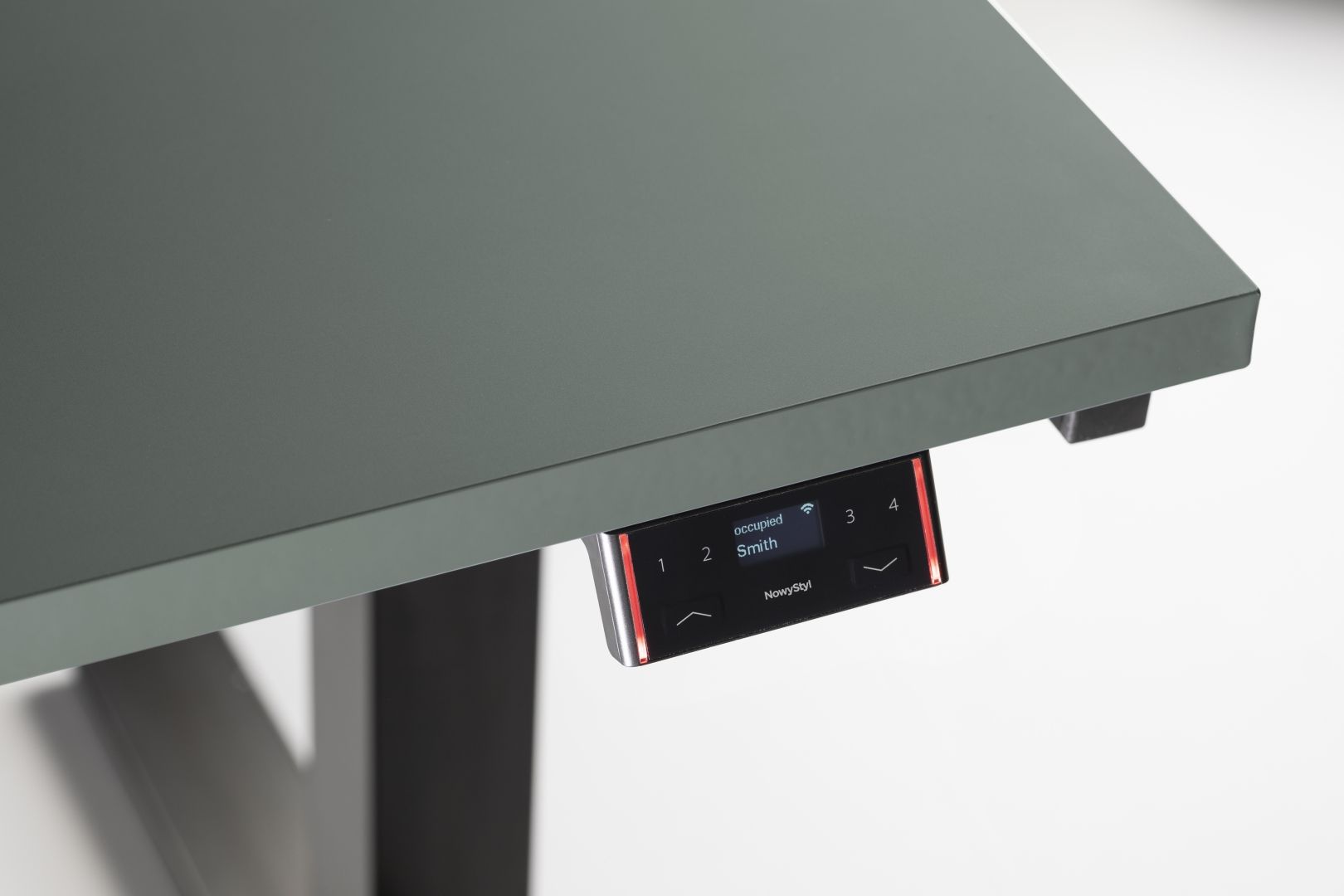

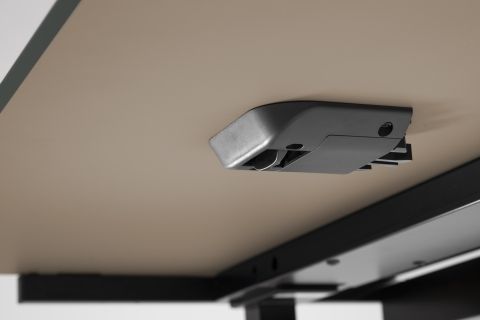

Control panel for desks and workbenches: with display and memory function of 4 positions
IOT System - control panel with display and memory function of 4 positions and possibility of remote workplace management

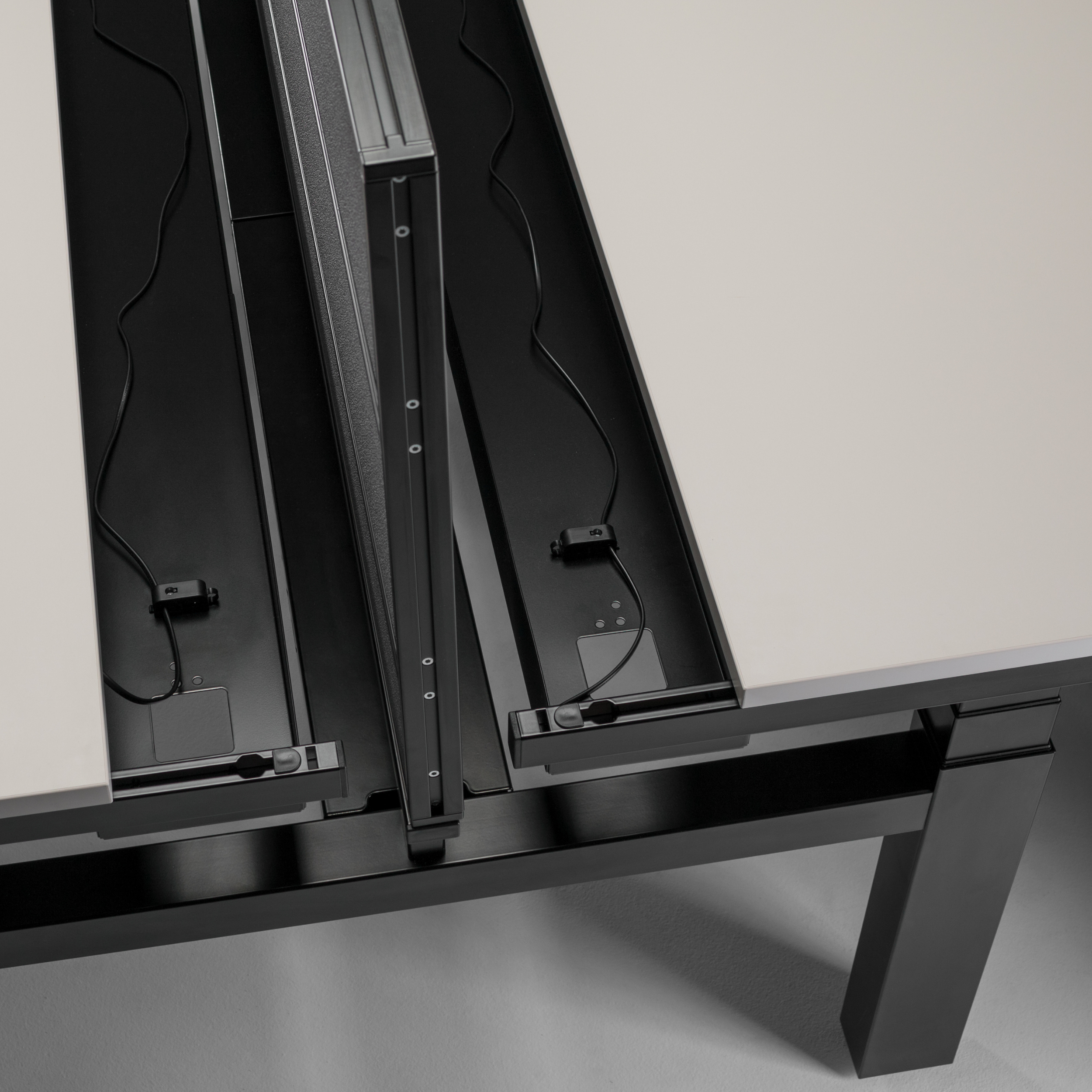

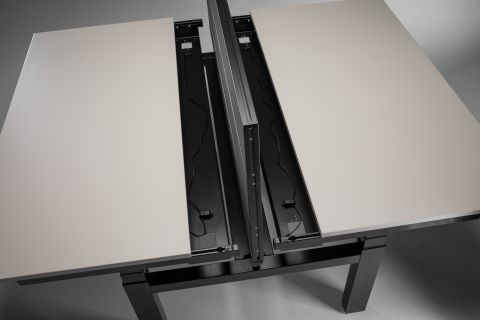

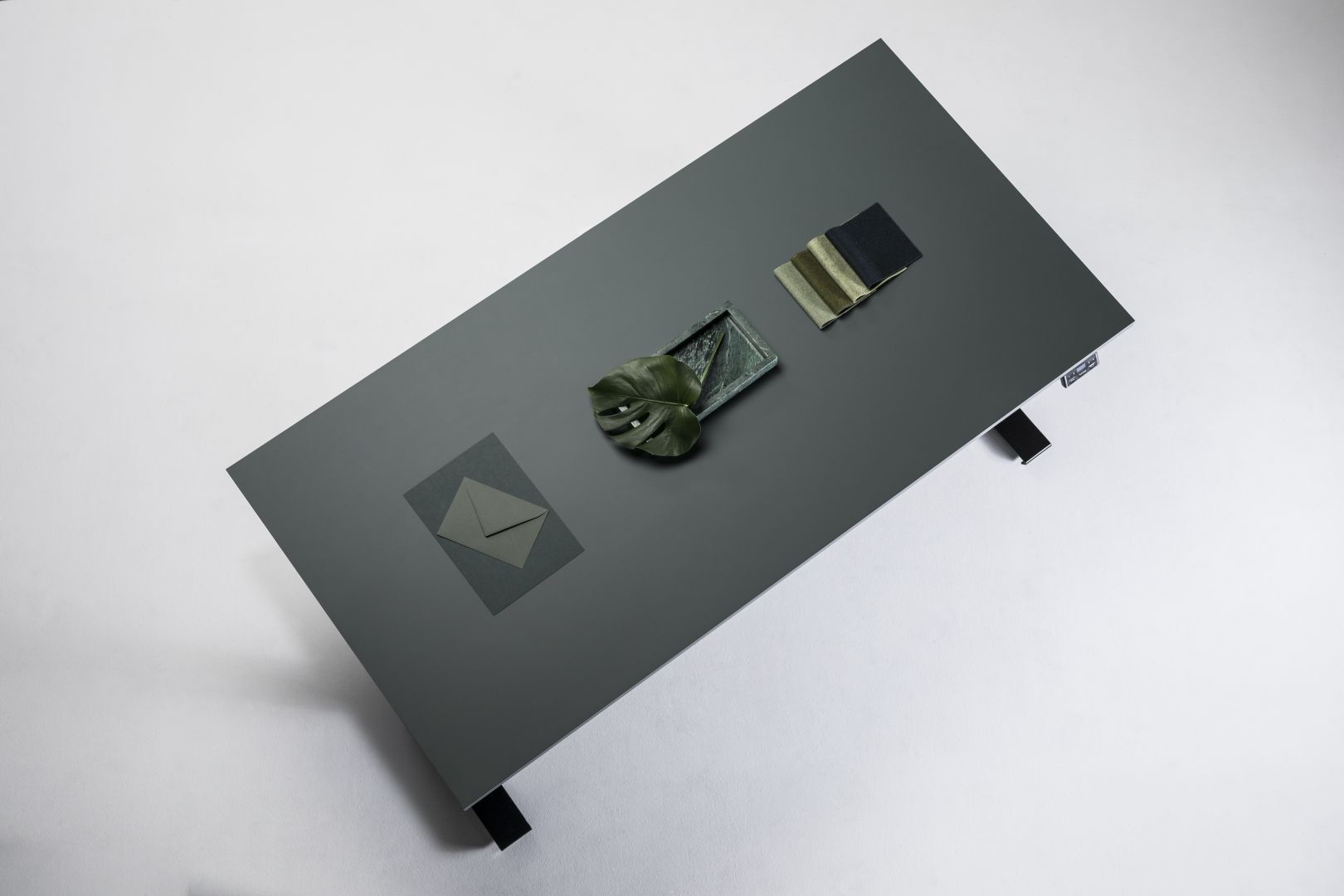

Fixed or sliding table tops
Upper desk panel, fully upholstered for desk

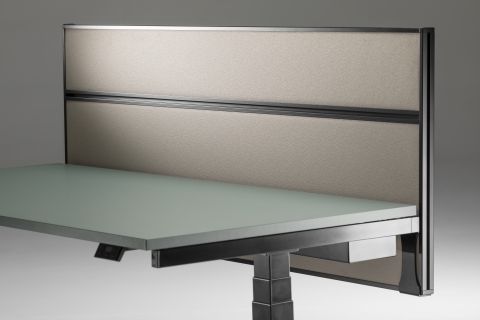

Upper desk panel, fully upholstered in aluminium frame for desk and workbenches

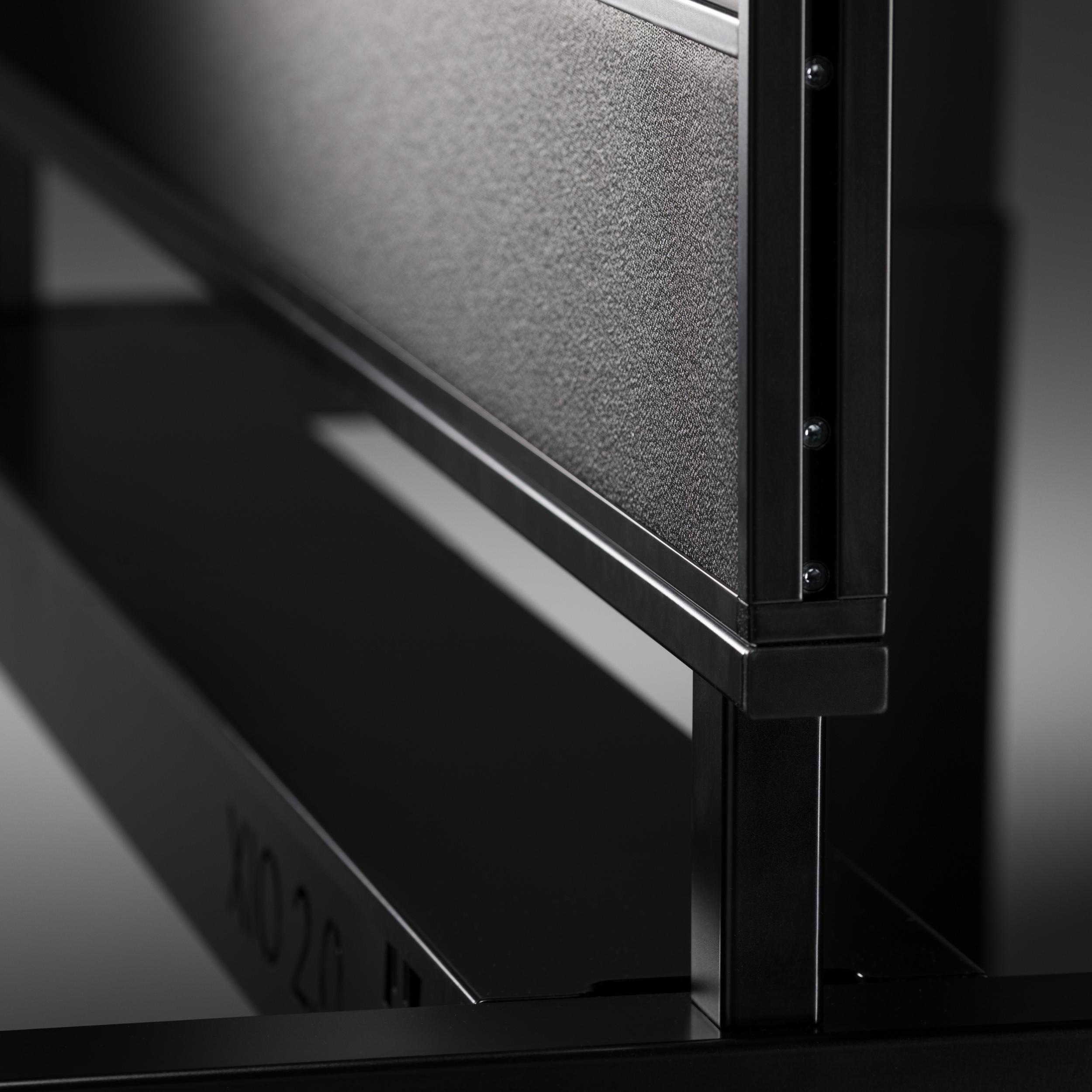

Way of fixing the upper fully upholstered panel in aluminium frame for workbenches

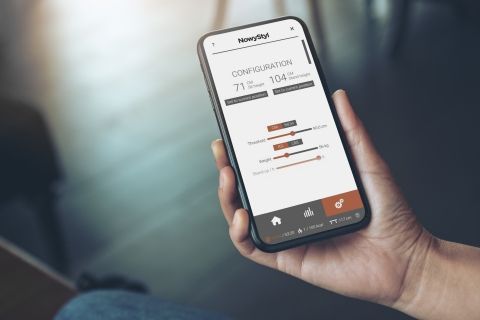

IOT System
Control panel with display and memory function of 4 positions and possibility of remote workplace management.
How does it work?
- make a desk-booking,
- find your colleague,
- check the office and the desk usage analytics.

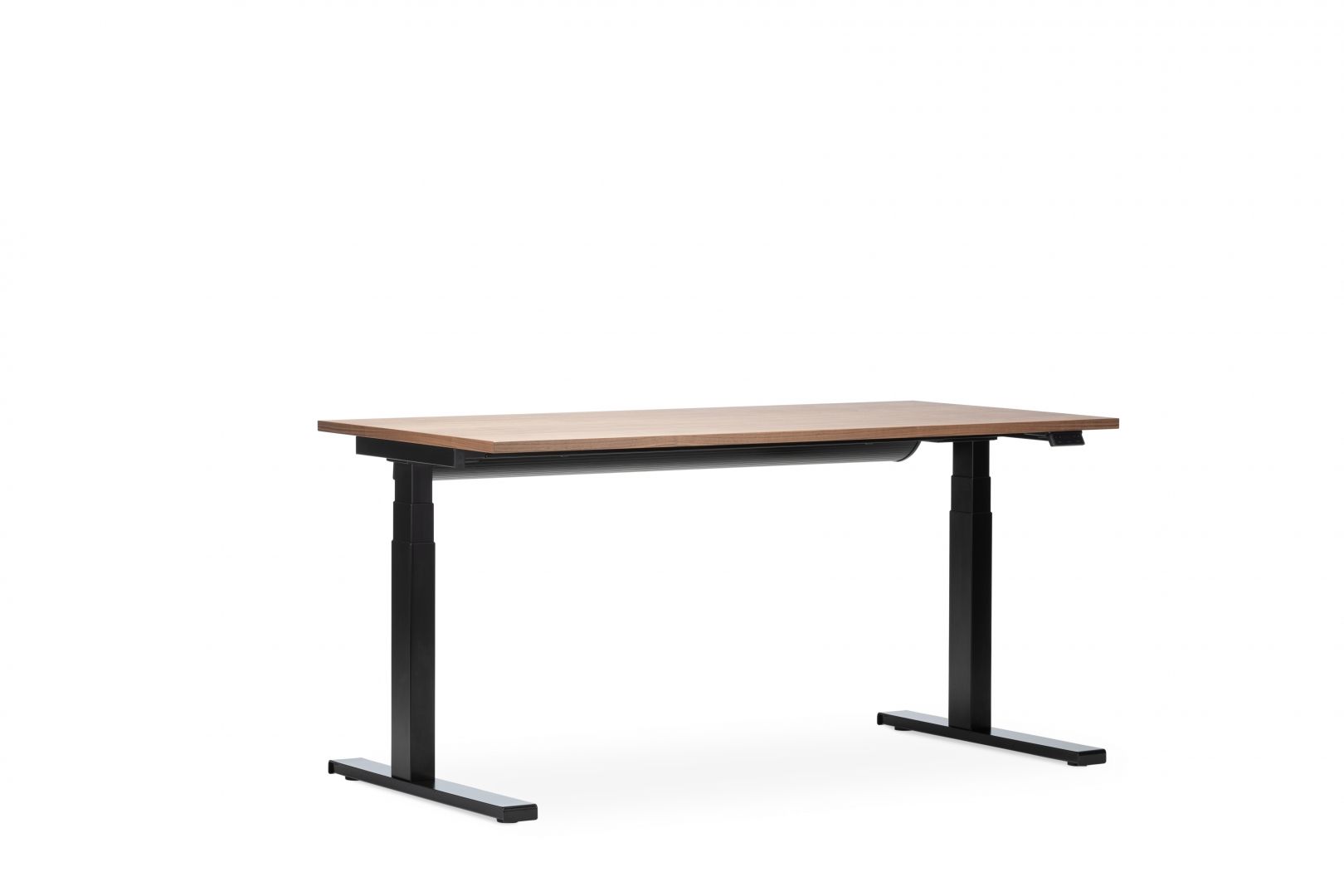

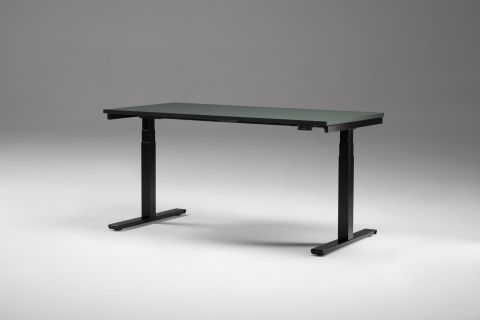

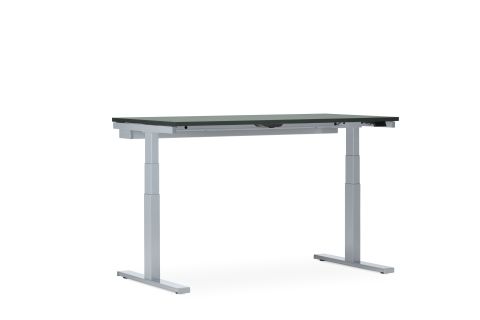

Desks
NEW XIO 2.0 combines form and function in one concept. Maximise the possible use of the desk.

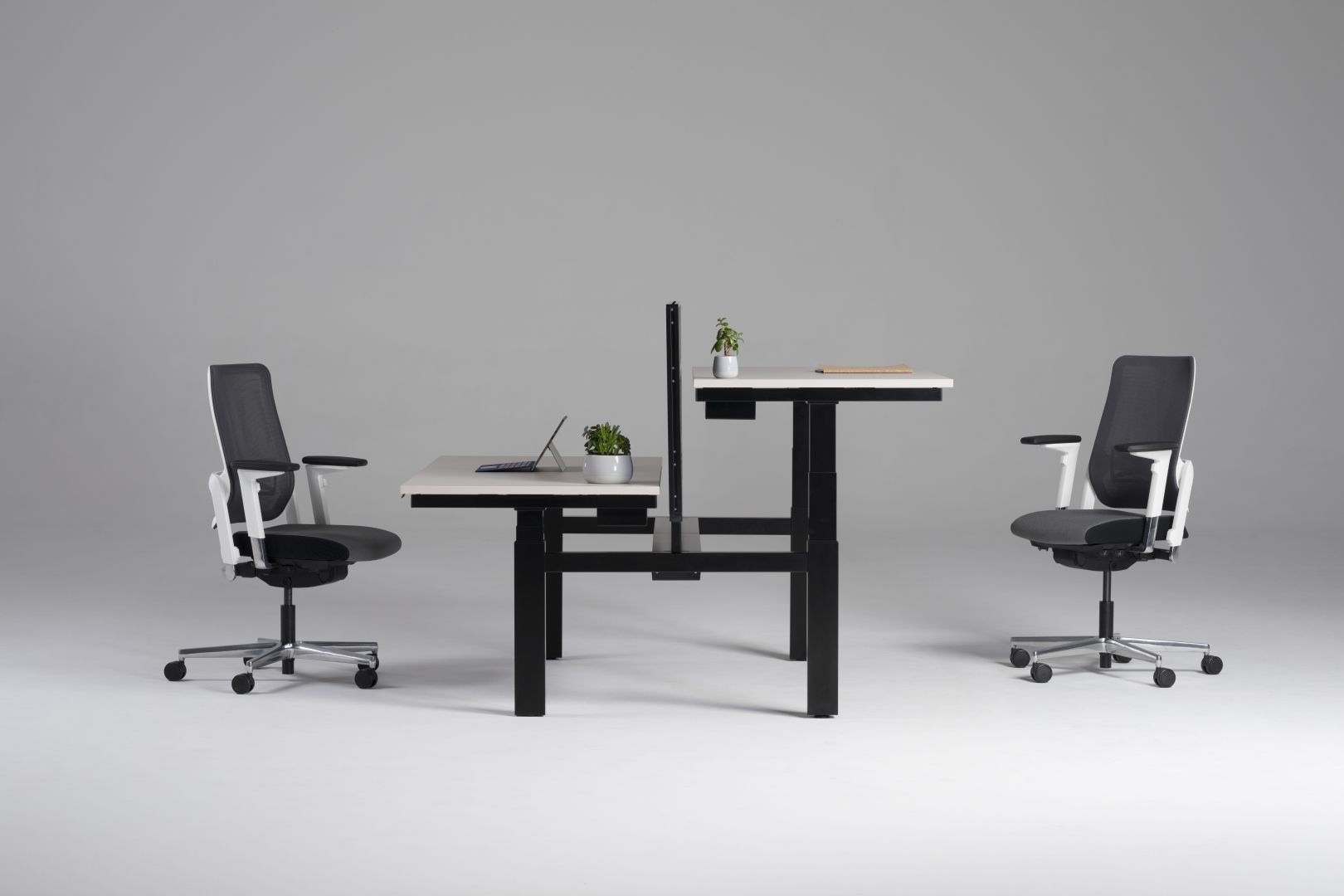

Workbenches
Flexible motion allows NEW XIO 2.0 to fit all users and not just one.
Desks:
Table Tops:
Fixed or sliding table tops – finish options:
- melamine faced chipboard (MFC), thickness 25 mm or 19 mm, 2 mm edge in glue tech-nology as standard, or laser edge as an option,
- laminate: both parts of chipboard covered with laminate, thickness 25 mm, 2 mm edge in glue technology as standard, or laser edge as an option,
- veneer: both parts of chipboard covered with veneer, thickness 25 mm, 2 mm natural edge as standard,
- Fenix NTM – upper part of chipboard covered with Fenix NTM laminate, bottom part covered with anti-resilient laminate in grey colour, thickness 25 mm, 1 mm laser edge as standard.
Available shapes of fixed and sliding table tops: rectangular in wide range of dimensions. Grommets and media ports (in various types and configurations) are an integral part of the product and they do not have to be ordered separately – available as an option. Exeptions are: MEDIAPORT DESK2 3M, MEDIAPORT DESK2 4M, MEDIAPORT STEP 4M, which have to be ordered separately.
Base:

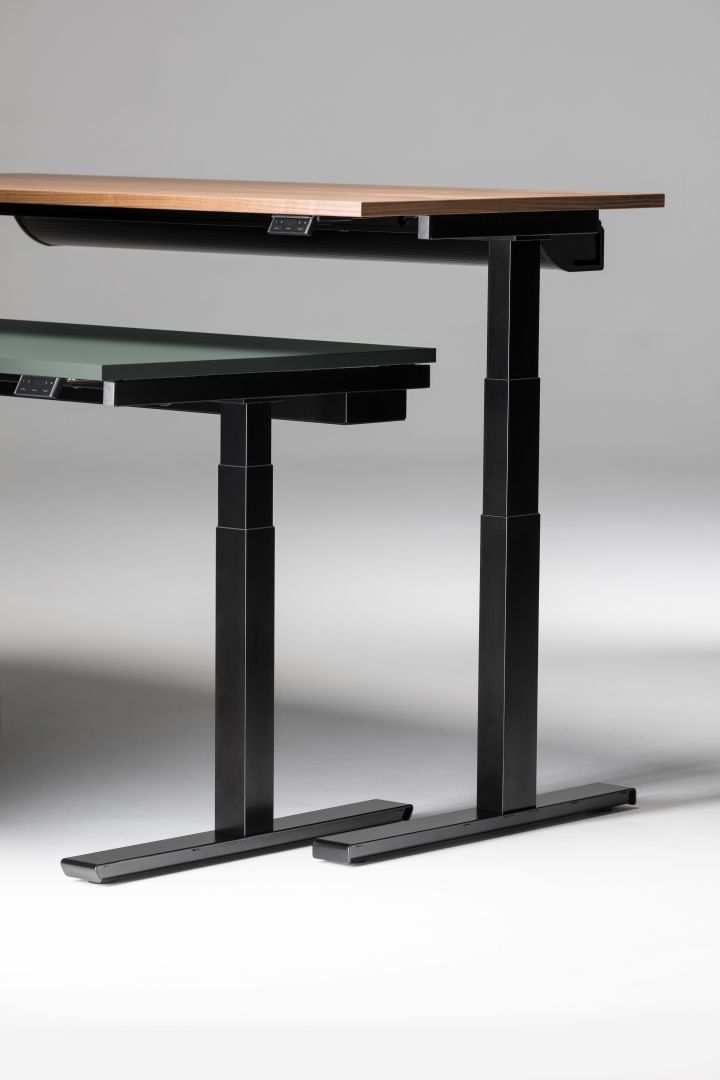

T-legs or C-legs with electric height adjustmentLeg consist of three‐segment angular column made of steel profile:
- square column, dimensions: 70 × 70, 65 × 65, 60 × 60 mm, from bottom to top respectively,
- rectangular column, dimensions: 90 × 60, 85 × 55, 80 × 50 mm, from bottom to top respectively.
Each column is equipped with a drive connected with control box. Available plug standards: European (EU), British (GB), and Swiss (CH).
Control panels for height adjustment:
- up & down button as standard,
- control panel with display and memory function (4 positions), as an option.
Anti‐Collision function (with an external gyro sensor) – while moving part of the desk hits an obstacle, function detects table top tilt, then table top stops and reverses to safe position. Function available as standard.
Foot types:
- foot XI1 (ends rounded at 30 ° angle),
- foot XI2 (ends rounded at 90 ° angle),
- foot XI3 (ends rounded at 120 ° angle).
Feet are equipped with levelling glides, levelling in range of 10 mm.
Fixed frame – welded.
Desk base divider – recommended to use for safety reasons, when making arrangement of two or more desks with height adjustment. Distance between table tops: 25 mm.Available dividers:
- for linear arrangement of desks,
- for block arrangement of desks.
Finish options: powder-coated in White aluminium (RAL 9006), Jet black (RAL 9005) or Pure white (RAL 9010) colour.
Panels:

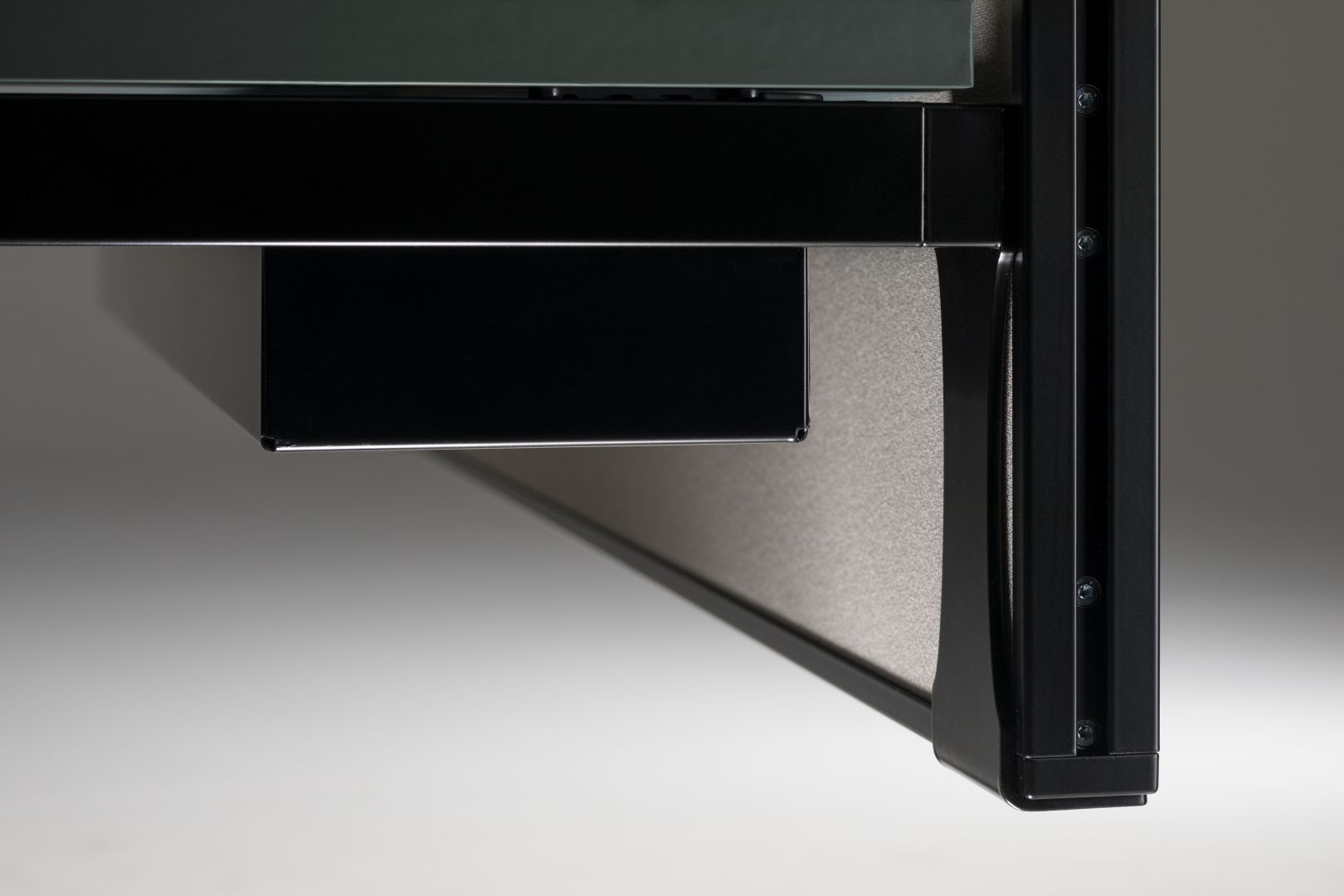

Desk panelsUpper, fully upholstered with aluminium frame, front – structure is made of chipboard with fabric cover, placed into aluminium frame. Panel thickness 40 mm, height 650 mm. Panel is equipped with organiser strips on both sides for hanging accessories. Assembly with metal brackets to desk frame.Brackets, aluminium frame and organiser strips finish options: powder-coated in White aluminium (RAL 9006), Jet black (RAL 9005) or Pure white (RAL 9010) colour.
Modesty, front – finish options:
- melamine faced chipboard (MFC), thickness 19 mm, with 2 mm edge in glue technology as standard,
- veneer – both sides of chipboard covered with veneer, thickness 19 mm, 2 mm natural edge as standard.
Assembly directly to fixed table tops with dedicated metal brackets, for sliding table tops assembly to frame. Brackets finish options: powder-coated in White aluminium (RAL 9006), Jet black (RAL 9005) or Pure white (RAL 9010) colour.
Modesty, front, perforated metal – made of metal sheet, thickness 1,5 mm. Available square perforation. Assembly directly to fixed table tops with dedicated metal brackets, for sliding table tops panel assembled to frame.Panel and brackets finish options: powder-coated in White aluminium (RAL 9006), Jet black (RAL 9005) or Pure white (RAL 9010) colour.
Workbenches:
Table top:
Fixed or sliding table tops – finish options:
- melamine faced chipboard (MFC), thickness 25 mm or 19 mm, 2 mm edge in glue tech-nology as standard, or laser edge as an option,
- laminate: both parts of chipboard covered with laminate, thickness 25 mm, 2 mm edge in glue technology as standard, or laser edge as an option,
- veneer: both parts of chipboard covered with veneer, thickness 25 mm, 2 mm natural edge as standard,
- Fenix NTM – upper part of chipboard covered with Fenix NTM laminate, bottom part covered with anti-resilient laminate in grey colour, thickness 25 mm, 1 mm laser edge as standard.
Available shapes of fixed and sliding table tops: rectangular in wide range of dimensions. Grommets and media ports (in various types and configurations) are an integral part of the product and they do not have to be ordered separately – available as an option. Exeptions are MEDIAPORT DESK2 3M, MEDIAPORT DESK2 4M, MEDIAPORT STEP 4M, which have to be ordered separately.
Base:
H-legs with electric height adjustment – consist of three‐segment angular columns made of steel profile, placed inside welded H‐shape leg frame. Available column shapes:
- square column, dimensions: 70 × 70, 65 × 65, 60 × 60 mm, from bottom to top respectively,
- rectangular column, dimensions: 90 × 60, 85 × 55, 80 × 50 mm, from bottom to top respectively.
H‐shape leg frame is laser welded with crossbeam, made of steel profile 60 × 60 mm. Dimensions of H‐shape leg frame vertical profiles:
- for square column 75 × 75 mm,
- for rectangular column 95 × 65 mm.
Legs are equipped with levelling glides, levelling in range of 10 mm.
Each column is equipped with a drive connected with control box. Available plug standards: European (EU), British (GB), and Swiss (CH).
Control panel for height adjustment:
- up & down button as standard,
- control panel with display and memory function (4 positions), as an option.
Anti‐Collision function (with an external gyro sensor) – while moving part of the desk hits an obstacle, function detects table top tilt, then table top stops and reverses to safe position. Function available as standard.
Fixed frame – welded.
Finish options: powder-coated in White aluminium (RAL 9006), Jet black (RAL 9005) or Pure white (RAL 9010) colour
panels:
Upper, fully upholstered with aluminium frame – structure is made of chipboard with fabric cover, placed into aluminium frame. Panel thickness 40 mm, height 600 mm. Panel is equipped with organiser strips on both sides for hanging accessories. Assembly with metal brackets to workbench crossbeams.
Upper, fully upholstered with aluminium frame, acoustic – structure is made of chipboard covered with sound‐absorbing foam filling and fabric cover, placed into aluminium frame. Panel thickness 40 mm, height 600 mm. Panel is equipped with organiser strips on both sides for hanging accessories. Assembly with metal brackets to workbench crossbeams.
Brackets, aluminium frame and organiser strips finish options: powder-coated in White aluminium (RAL 9006), Jet black (RAL 9005) or Pure white (RAL 9010) colour.
