eUP by Nowy Styl

Take your desk to the next level

eUP is a product by Nowy Styl

Our bodies have not been designed to sit all day, this is why it is very important that we change our position while at work.

Meet eUP desks and find a healthier way to spend your day in the office.

Ergonomy

Take a break from your chair - less sitting starts with you!

Switch your position whenever you feel like it and live healthier than ever before.

Functions and options

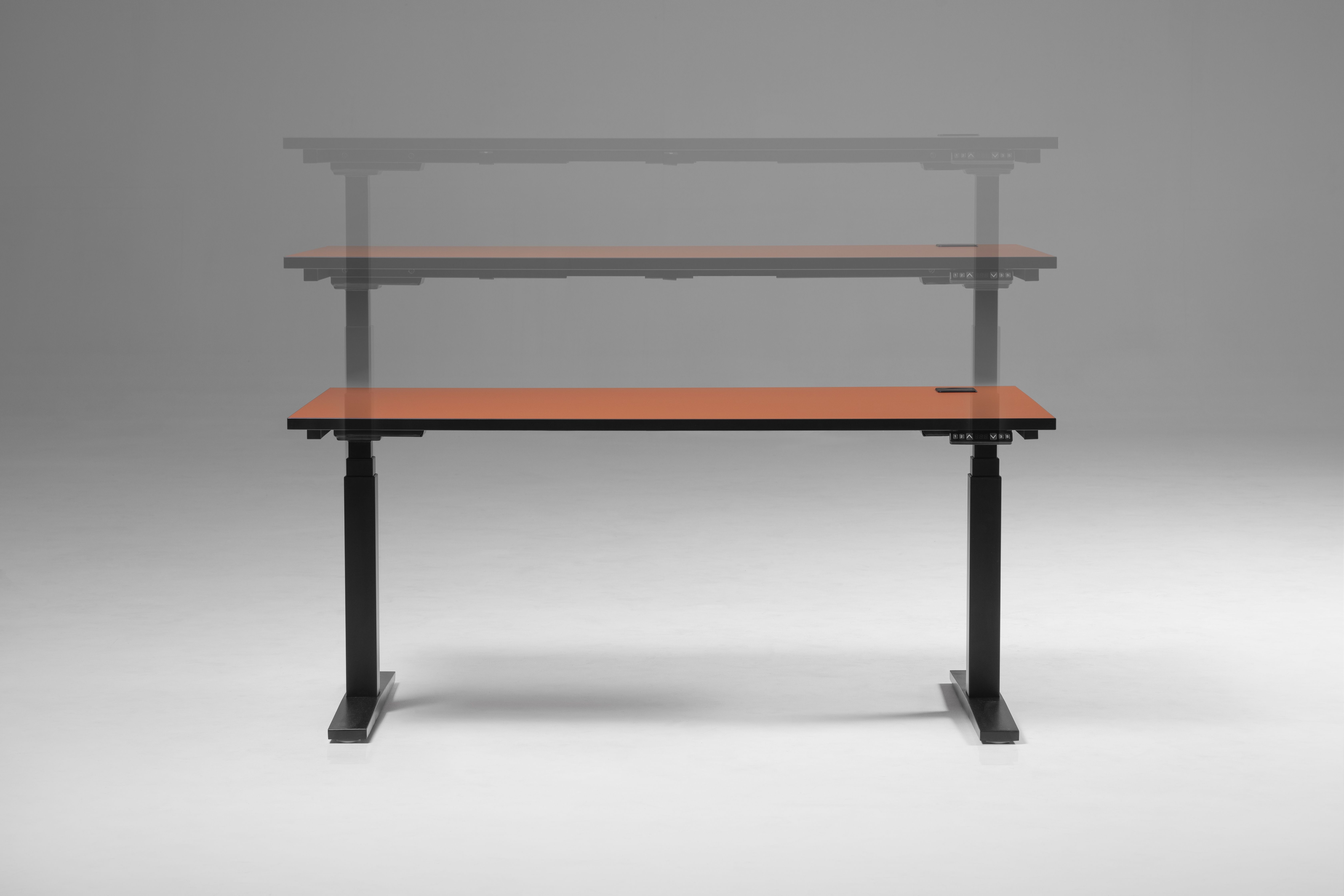

Electric height adjustment of the table top

eUP2 Control panel

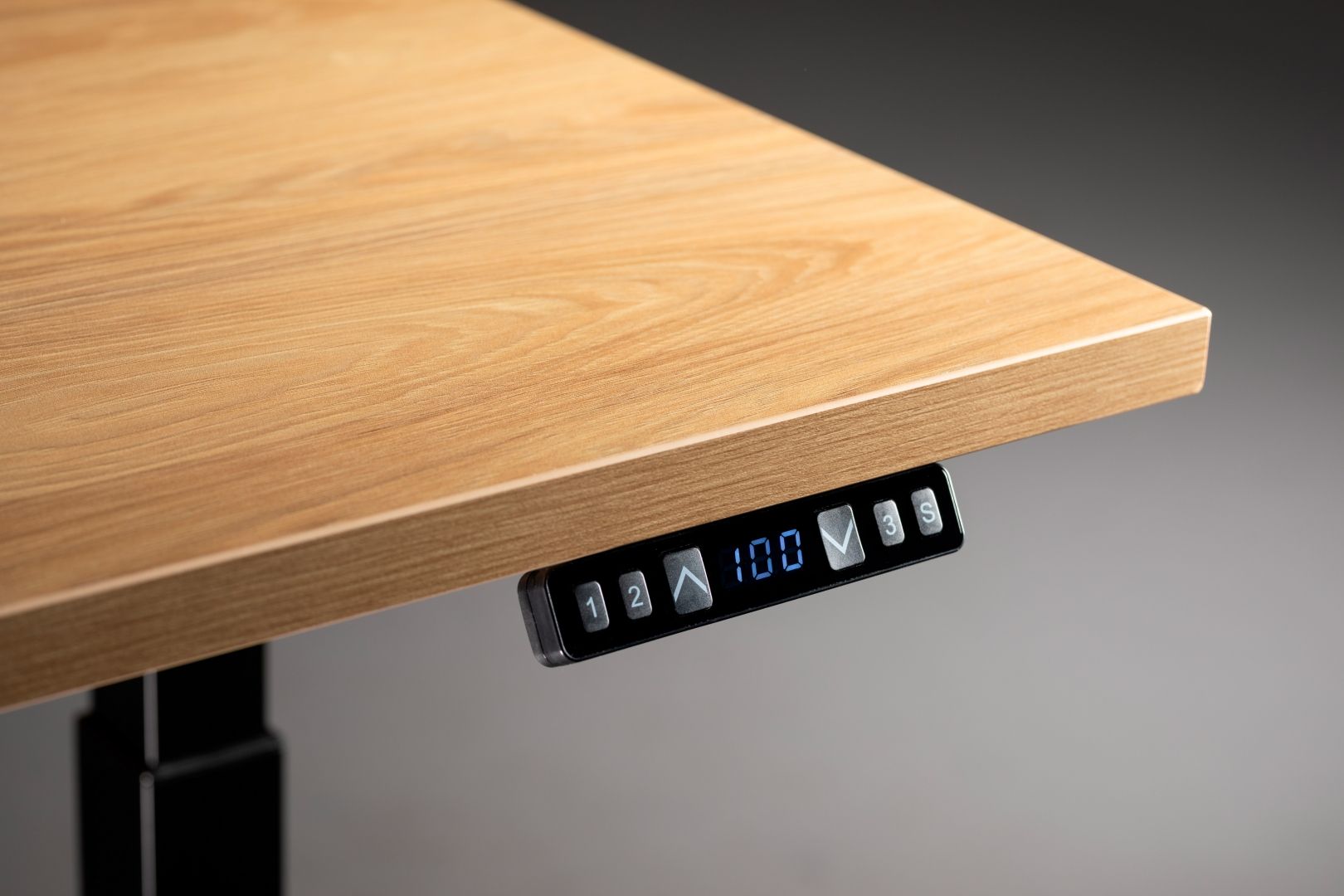

eUP3 Control panel with display and memory function

Fully upholstered panel

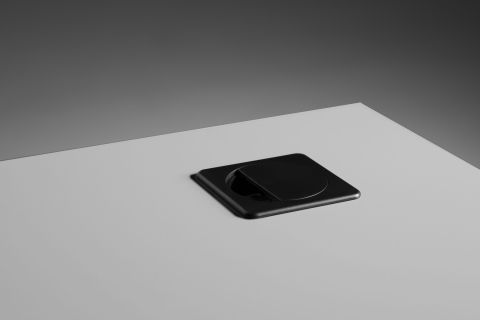

Grommets and media ports

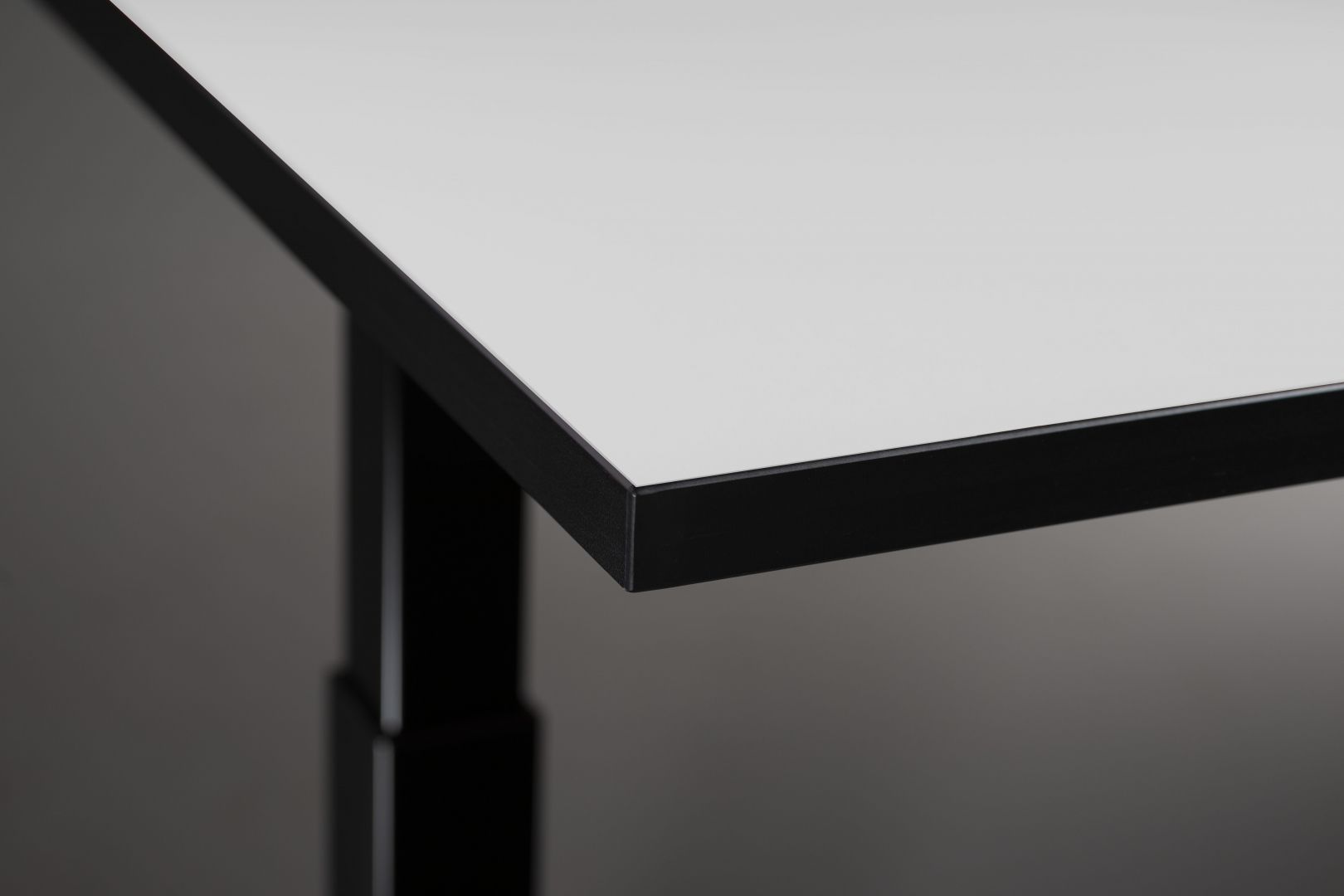

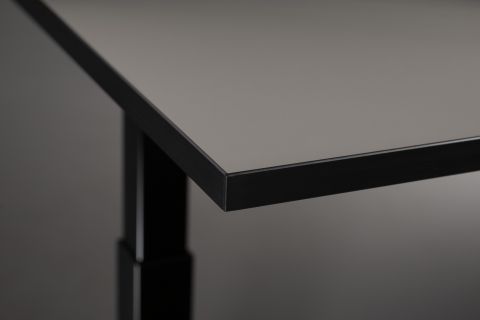

Table top made of melamine faced chipboard (MFC), with 2mm edge

H-legs base with three-segment columns (eUP3 workbench)

Telescopic frame

Thanks to the telescopic frame, we can choose the right width of the tabletop and
adjust the size of the desk to our needs. Designing a new office with eUP desks
you can choose the suitable size of the tabletop, which makes it easy to arrange
any workplace.

Anti-Collision – while moving part of the desk hits an obstacle, function detects
table top tilt, then table top stops and reverses to safe position. Function available
as standard.

Simple design does not mean boredom!

A wide palette of colours will allow you to choose the colour of the desk top that
reflects your character or status.

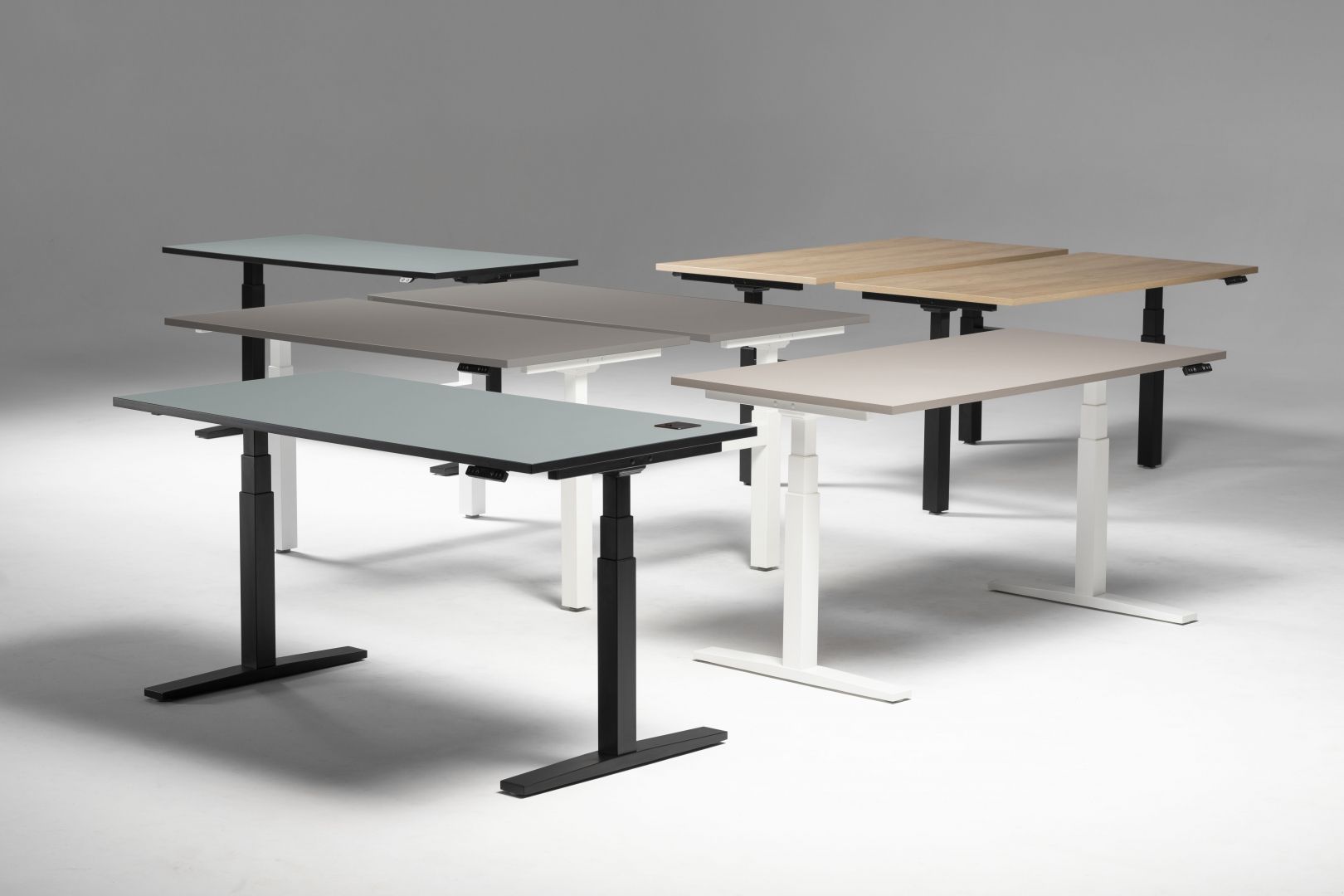

eUP2 desk

Electric height adjustable eUP2 desk is the simple answer for those who are looking for products with basic options and functionalities.

eUP3 desk

The eUP3 desks, with electric height adjustment and GS safety certificate, thanks to their universal construction will fit into any office space.

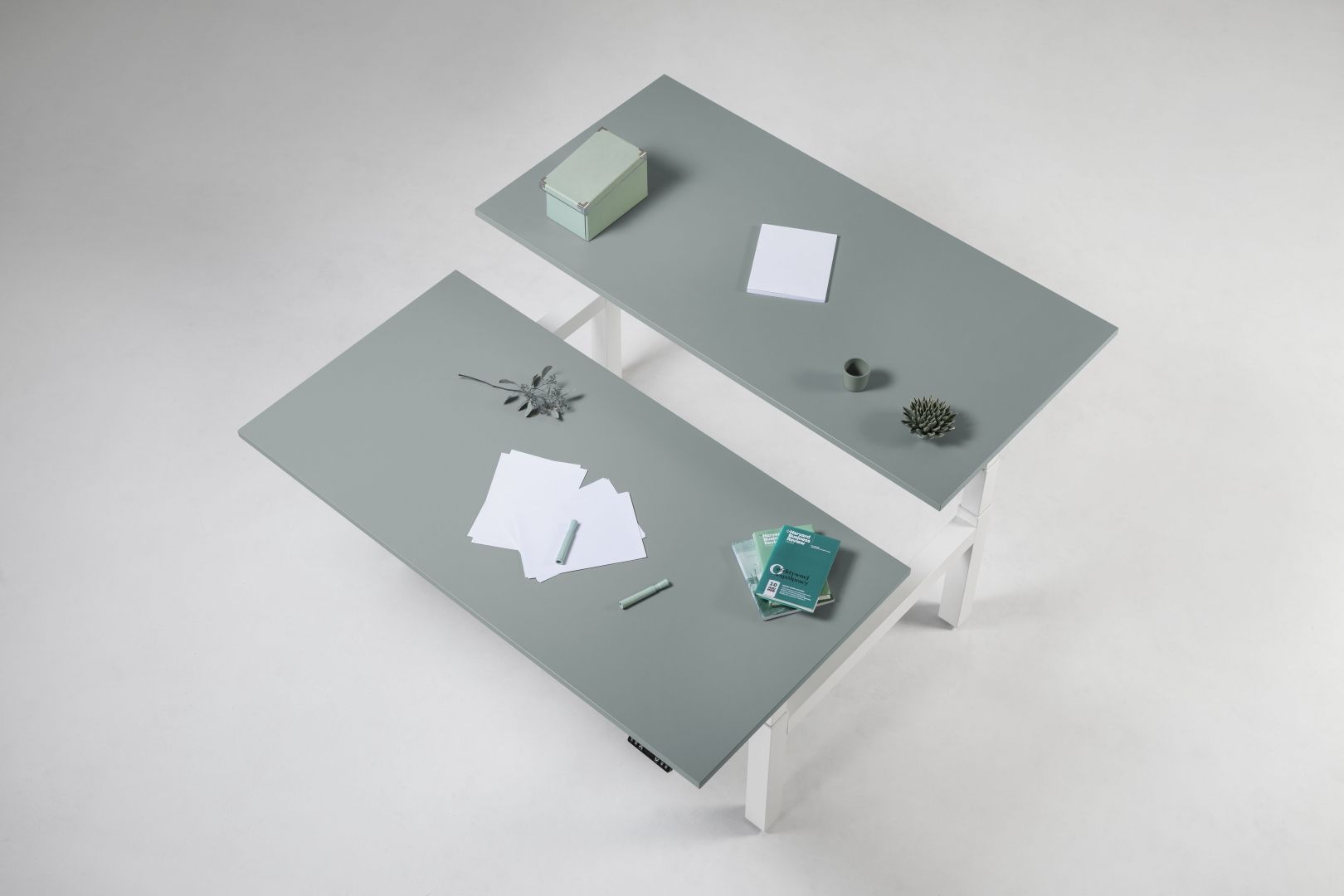

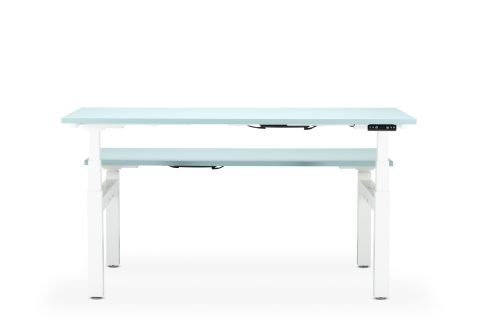

eUP3 workbench



The eUP3 line is also a multifunctional workbench enabling effective work and easy communication between teams.

Desks:

Table top:

Fixed table tops – made of melamine faced chipboard (MFC), thickness 25 mm or 19 mm, with 2 mm edge in glue technology as standard, or laser edge as an option. 3 mm edge in glue technology or laser edge, both as an option, applicable to table top thickness 25 mm. Available shape: rectangular in wide range of dimensions. Grommets and media ports (in various types and configurations) are an integral part of product and don’t need to be ordered separately – available as an option.



Base:

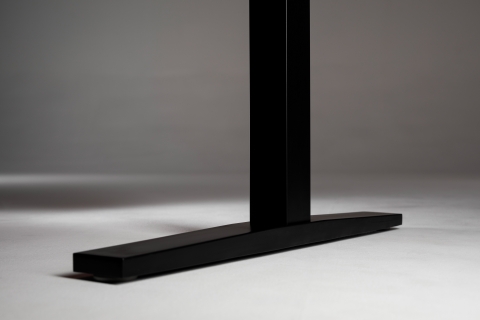

T-legs with electric height adjustment in range of 500 mm (eUP 2) – two-segment angular columns made of steel profile – dimensions: 70 × 70 mm, 60 × 60 mm, from bottom to top respectively, with feet equipped with levelling glides, levelling in range of 10 mm. Each column is equipped with a drive connected with control box. Available plug standards: European (EU), British (GB), and Swiss (CH).

Control panel for height adjustment – up & down button.

Anti-Collision function – (overload with gyro sensor) while moving part of the desk hits an obstacle, function detects table top tilt, then table top stops and reverses to safe position. Function available as standard.

Telescopic frame – adjustable in range of 1200 –1600 mm.

Finish options – powder-coated in White aluminium (RAL 9006), Jet black (RAL 9005) or Pure white (RAL 9010).

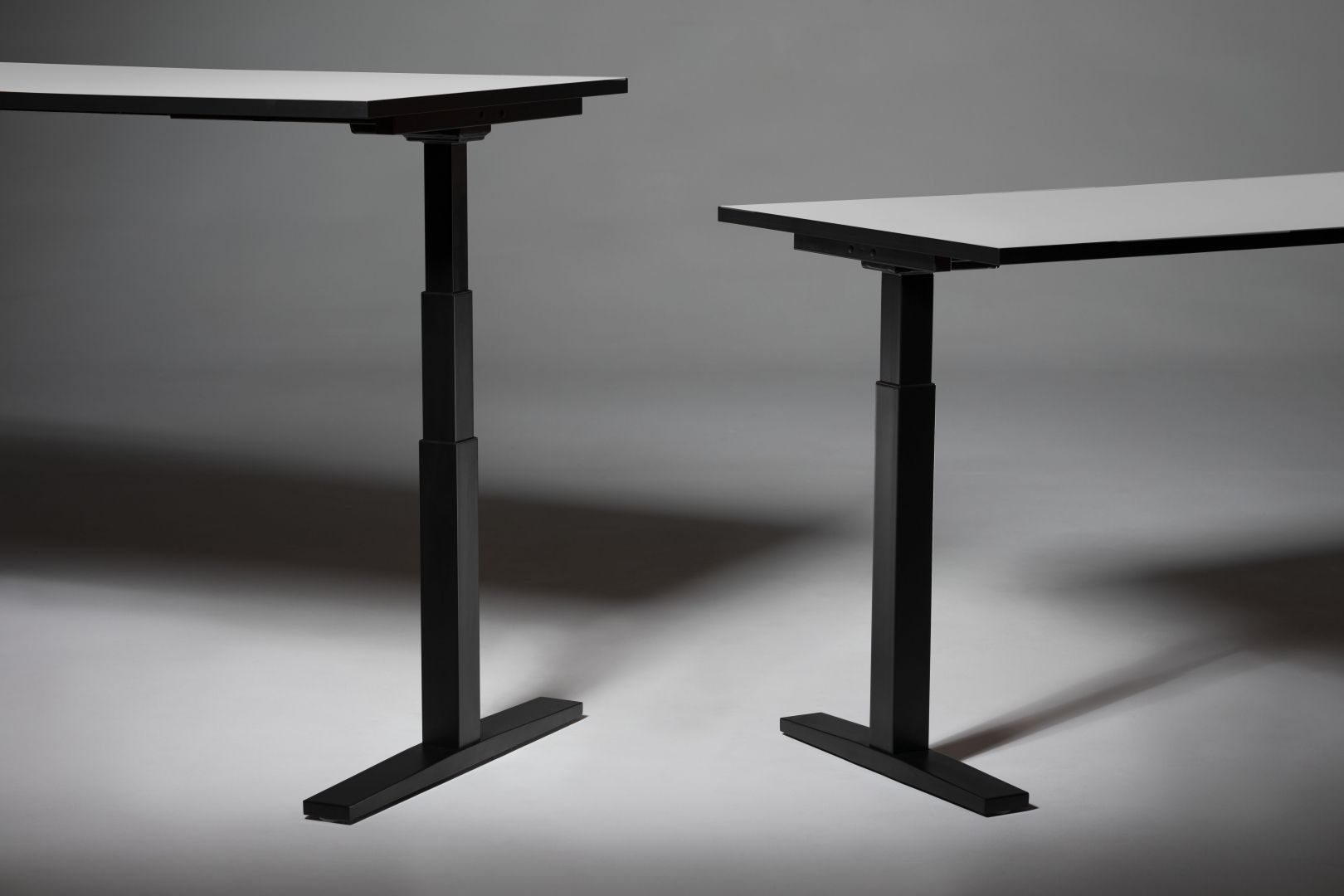

T-legs with electric height adjustment in range of 650 mm (eUP 3) three-segment angular columns made of steel profile – dimensions: 70 × 70 mm, 60 × 60 mm, 50 × 50 mm from bottom to top respectively, with feet equipped with levelling glides, levelling in range of 10 mm. Each column is equipped with a drive connected with control box. Available plug standards: European (EU), British (GB), and Swiss (CH).

Control panel for height adjustment – control panel with display and memory function.

Anti-Collision function – (overload with gyro sensor) while moving part of the desk hits an obstacle, function detects table top tilt, then table top stops and reverses to safe position. Function available as standard.

Telescopic frame – adjustable in range of 1200 –1800 mm.

Finish options – powder-coated in White aluminium (RAL 9006), Jet black (RAL 9005) or Pure white (RAL 9010).



Panels:

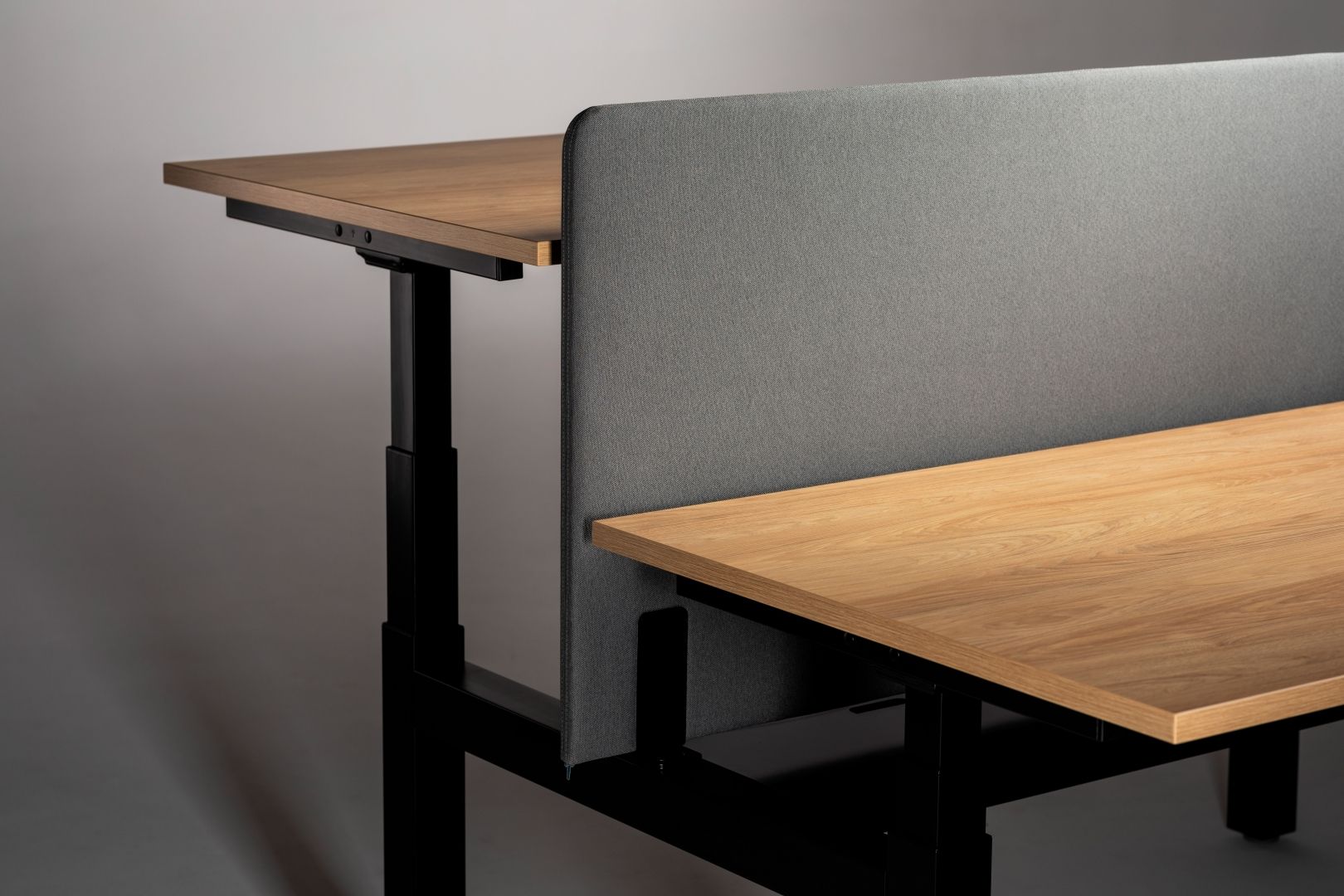

Upper, fully upholstered, front, CS5040 design – model 1– structure is made of 8 mm raw chipboard with 8 mm soft fibreboard on both sides, with fabric cover, pinnable. Panel thickness 24 mm, upper edges rounded at 50 mm radius. Assembly with metal brackets pulled over table top edge. Upholstered panel is placed in U-shape bracket, and can be easily removed.

Brackets finish options: powder-coated in White aluminium (RAL 9006), Jet black (RAL 9005) or Pure white (RAL 9010) colour.

Upper, felt, front, CS5040 design – model 1 – made of thermoformed felt in light or dark grey colour. Panel thickness 24 mm, upper edges rounded at 40 mm radius. Assembly with metal brackets pulled over table top edge. Felt panel is placed in U-shape bracket, and can be easily removed.

Brackets finish options: powder-coated in White aluminium (RAL 9006), Jet black (RAL 9005) or Traffic white (RAL 9016) colour.

Modesty, board, front, eModel design – model 1 – made of melamine faced chipboard (MFC), thickness 18 mm, with edge in glue technology. Assembly with metal brackets pulled over table top edge. Available shapes: rectangular or with edges rounded at 40 mm radius.

Brackets finish options: powder-coated in White aluminium (RAL 9006), Jet black (RAL 9005) or Pure white (RAL 9010) colour.

Modesty, fully upholstered, front, eModel design – model 1 – structure is made of chipboard, thickness 16 mm, with fabric cover, edges rounded at 40 mm radius. Assembly with metal brackets pulled over table top edge.

Brackets finish options: powder-coated in White aluminium (RAL 9006), Jet black (RAL 9005) or Pure white (RAL 9010) colour. Note: simultaneous assembly of modesty and upper panel is not possible.

Workbenches:

Taple top:

Fixed table tops – made of melamine faced chipboard (MFC), thickness 25 mm or 19 mm, with 2 mm edge in glue technology as standard, or laser edge as an option. 3 mm edge in glue technology or laser edge, both as an option, applicable to table top thickness 25 mm. Available shape: rectangular in wide range of dimensions. Grommets and media ports (in various types and configurations) are an integral part of product and don’t need to be ordered separately – available as an option.




Base:

H-legs with electric height adjustment in range of 650 mm (eUP 3 ) – three-segment angular columns made of steel profile – dimensions: 70 × 70 mm, 60 × 60 mm, 50 × 50 mm from bottom to top respectively, connected with crossbeam made of steel profile 69 x 69 mm, levelling in range of 10 mm. Each column is equipped with a drive for telescoping function, connected with control box. Available plug standards: European (EU), British (GB), and Swiss (CH).

Control panel for height adjustment – control panel with display and memory function.

Anti-Collision function – (overload with gyro sensor) while moving part of the desk hits an obstacle, function detects table top tilt, then table top stops and reverses to safe position. Function available as standard.

Telescopic frame – adjustable in range of 1200 –1800 mm.

Finish options – powder-coated in White aluminium (RAL 9006), Jet black (RAL 9005) or Pure white (RAL 9010).




Panels:

Upper, fully upholstered, eUP design – model 1 – structure is made of 8 mm raw chipboard with 8 mm soft fibreboard on both sides, with fabric cover, pinnable. Panel thickness 24 mm, upper edges rounded at 50 mm radius. Assembly with metal brackets to workbench crossbeams.

Brackets finish options: powder-coated in White aluminium (RAL 9006), Jet black (RAL 9005) or Pure white (RAL 9010) colour.
