Calado is a product by Nowy Styl
With its ergonomic features, simple design & functionality, the Calado range holds much appeal for the discerning architect and designer.
Due to the wide range of models and additional elements as a tablet, the Calado chair is the perfect choice for all conference and lecture rooms. By using the universal row linking system, you can easily control distance adjustment.
Seat and backrest
Backrest – PP (polypropylene) reinforced with glass fibre. Maximum dimensions 440 × 370 mm.
Seat – PP (polypropylene) inner and outer seat. Maximum dimensions 430 × 455 mm.

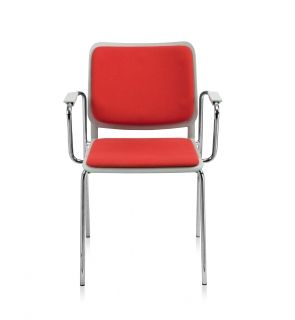

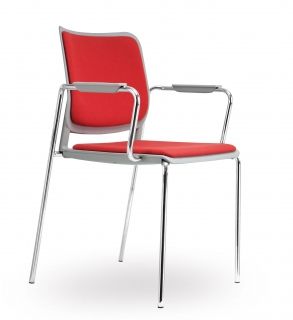

Seat Plus – seat cushion made of foam (density 25 kg/m3, thickness 20 mm). PP (polypropylene) colours and codes: black – CPP02; light grey – CPP32; olive – CPP34; cherry – CPP30; white – CPP01.
Frame

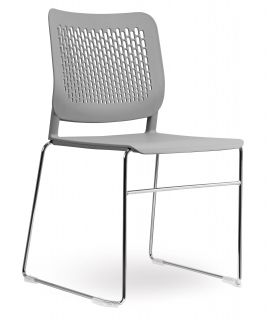

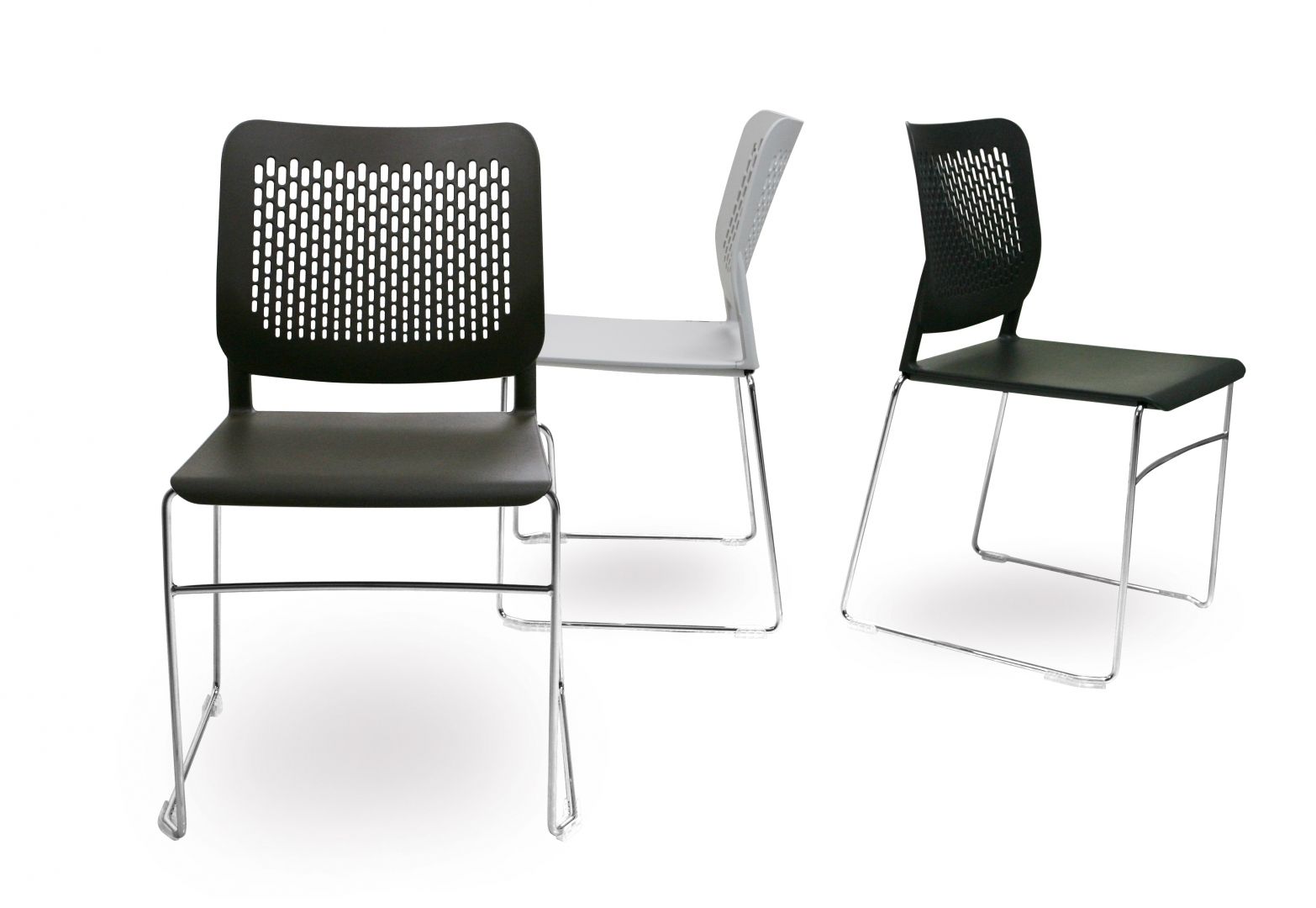

CFS – steel rod Ø 11 mm.

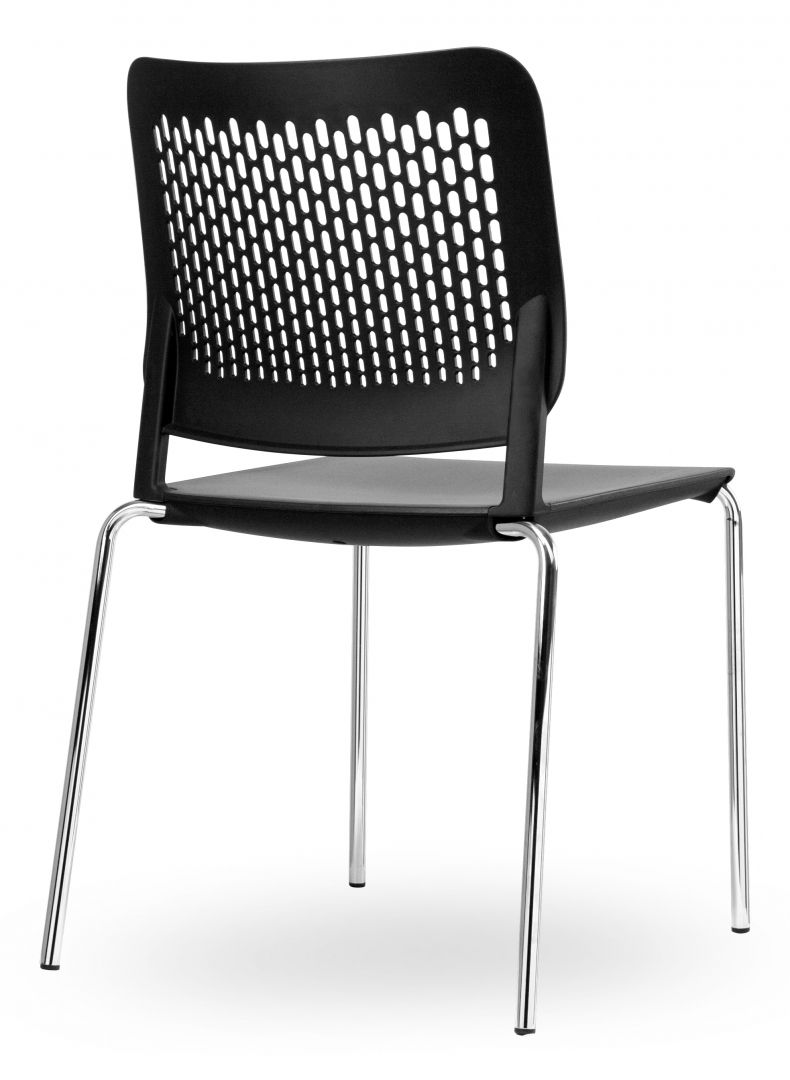

4L – steel tube Ø 18 mm and steel rod Ø 11 mm.
4L-ARM/FRONT – steel tube 18 × 2 mm and steel rod Ø 11 mm.

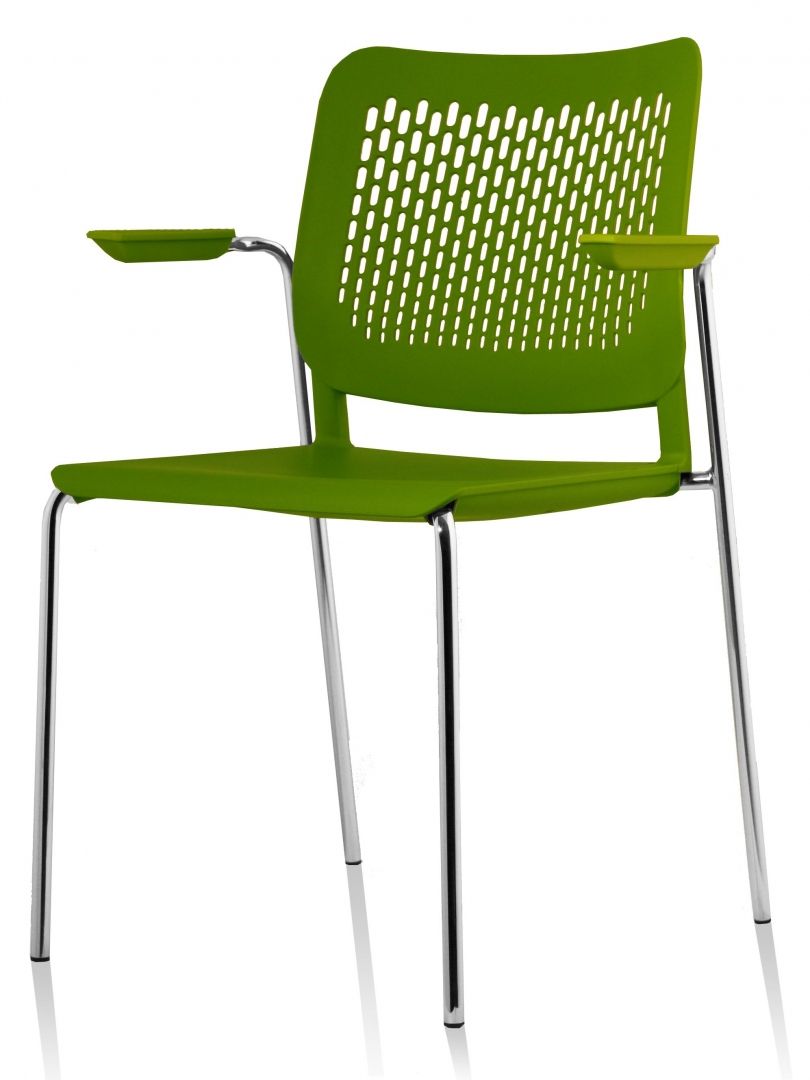

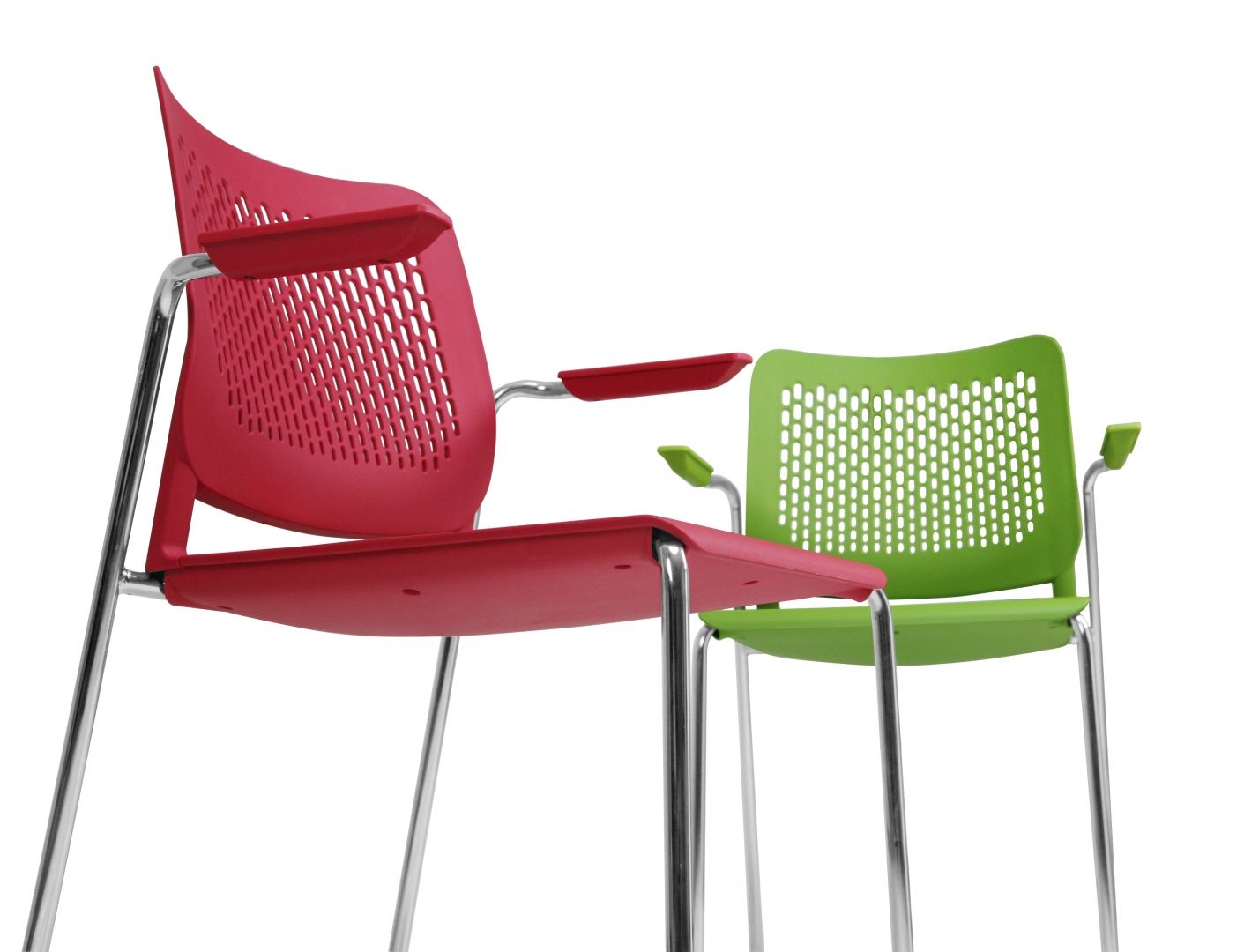

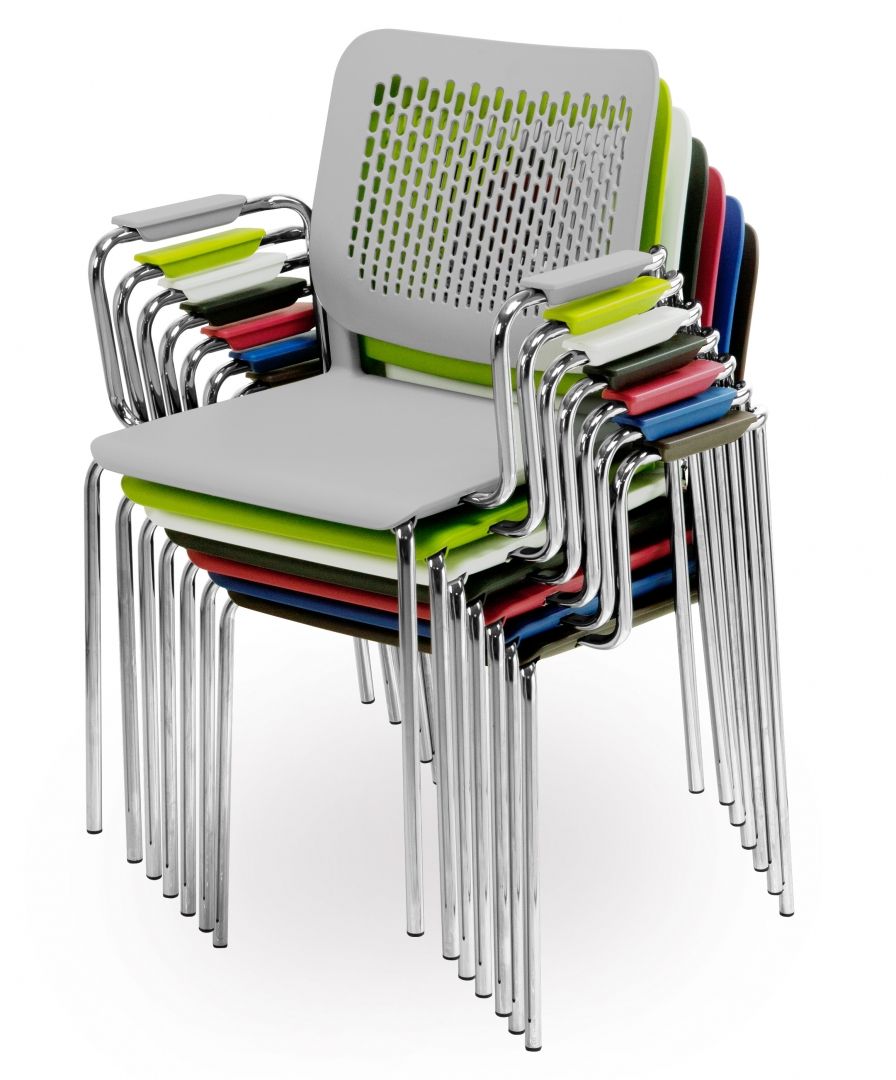

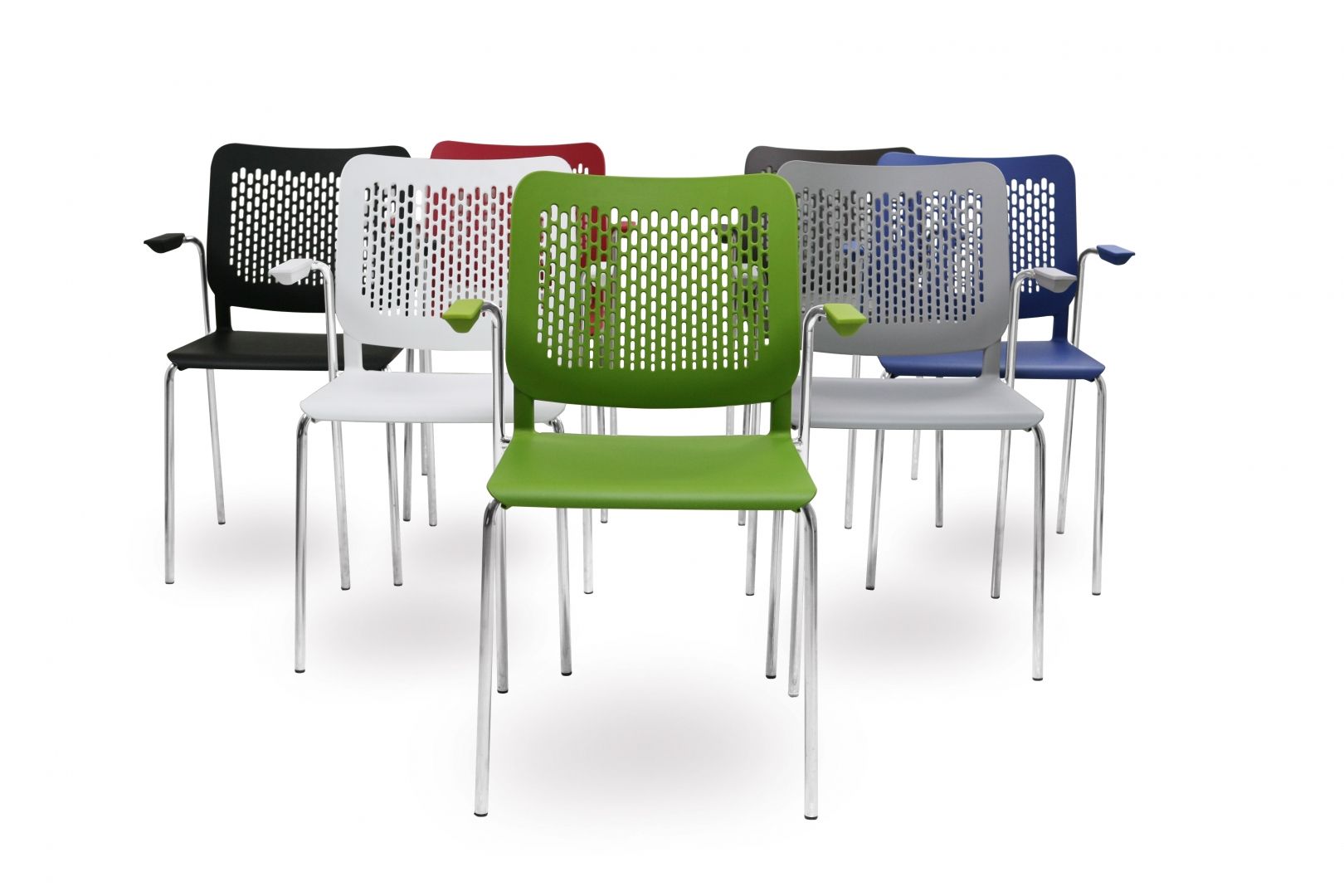

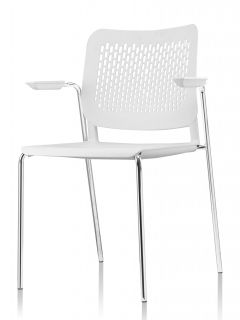

4L-ARM – steel tube Ø 18 mm and steel rod Ø 11 mm.

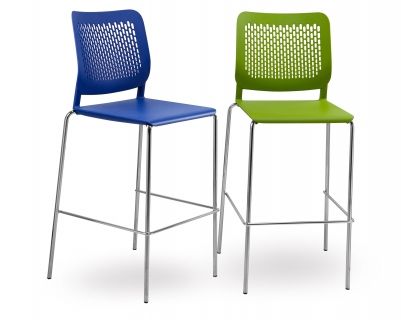

HOCKER – steel tube Ø 18 × 2 mm and steel rod.
Possibility to connect chairs into rows using glides (applicable to the CFS model) or LINK-PLASTIC 18 REG (applicable to the 4L model).
Armrests

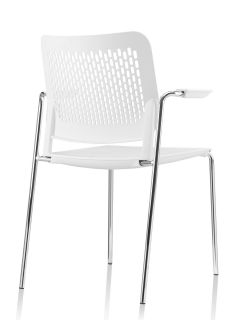

Armrest pads made of PP.
Armrest writing tablet made of PP.
Armrests integrated with the frame. 4L-ARM/FRONT MODEL – chair to be hung on the table top.

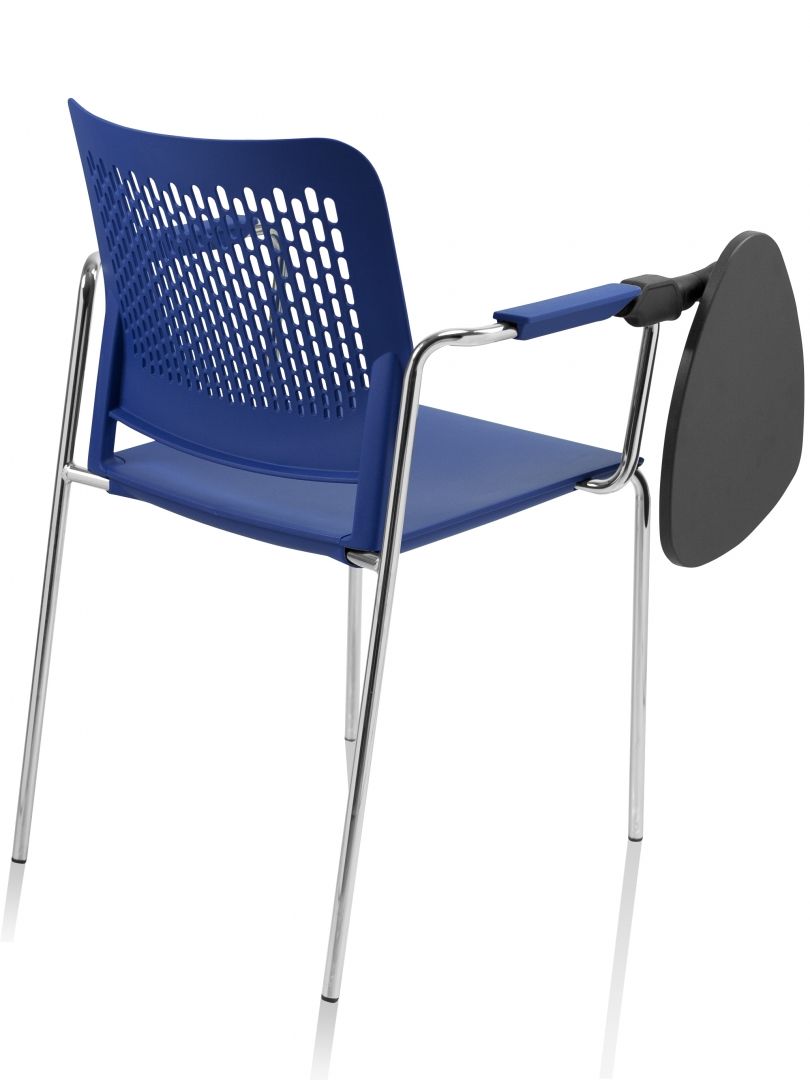

Writing tablet

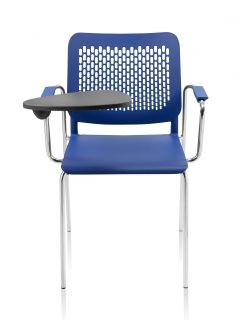

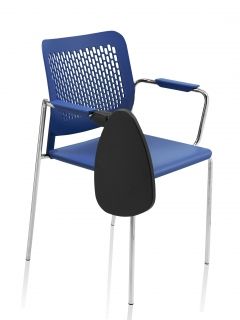

Writing tablet (right or left) – available as an option for the Calado 4L-ARM model only. Tablets cannot be retrofitted. Calado chairs with tablets cannot be stacked.
Additional fittings
UNIVERSAL ROW LINKING SYSTEM (ROWLINK 520 + 60):
- dedicated for 4-leg chairs (max leg diameter 25 mm, max rear leg angle 18°),
- distance regulation: 60 mm, 7-step distance, adjustment lock function (10 mm stroke),
- distance adjustment marking,
- floor mounting option,
- distance adjustment for the AXO versions with glides G17F G3, G3F: 410–470 mm.
The linking system is made of: a steel bar 40 × 4 mm, a steel tube Ø 54 × 3.2 mm, steel foil 1 mm thick, PP slide bearing. Powder-coated in black, RAL 9005.
Glides
ABS glides for the 4L model.
Polyethylene (PE) glides for the CFS model.
Optional: row linking glides.
